Similar Illustration
Replacement available
Only CAD model download is supported

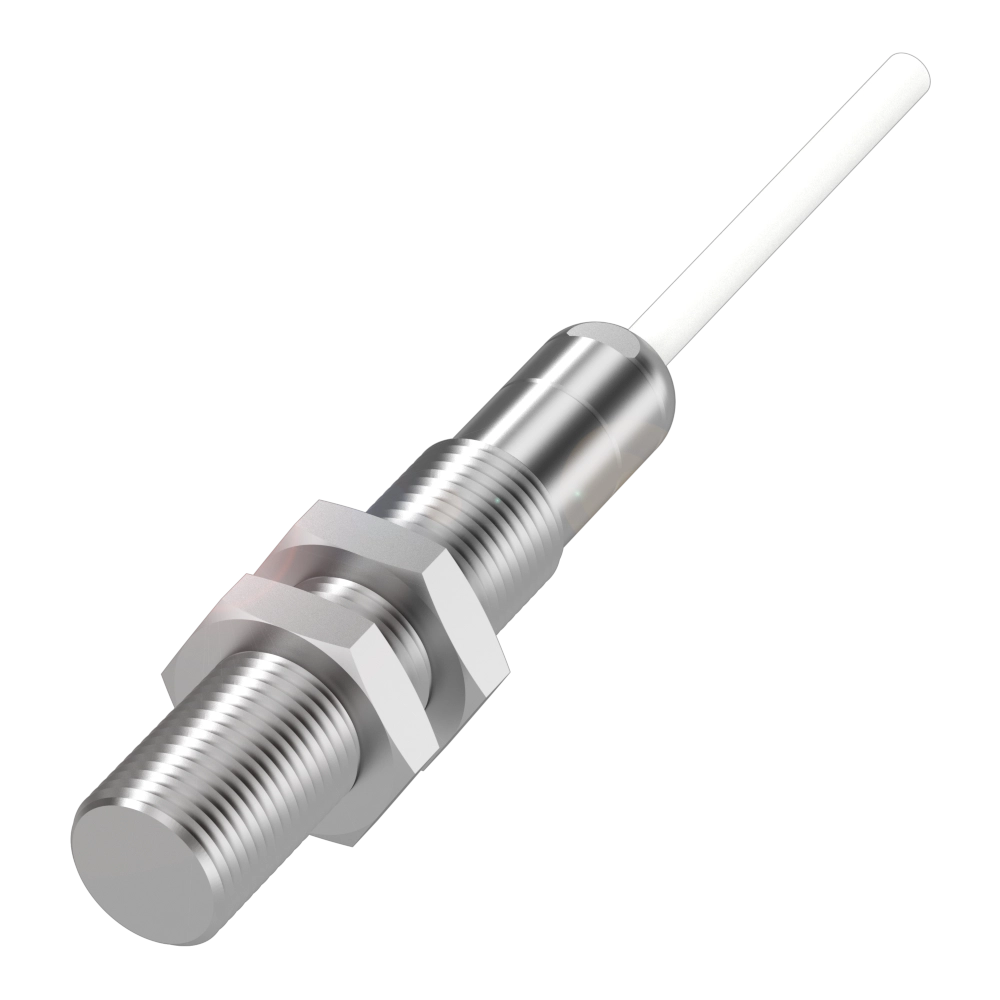

Cylindrical version for temperature-resistant applications
Dimension
Ø 12 x 75 mm
Style Housing
M12x1
Installation
for flush mounting
Range
2 mm
Switching output
PNP Normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BES 516-325-SA19-03 | BES 515-325-SA74-D-TF-02 | BES 516-325-SA19-05 | |
|
229.81 USD
List price
|
231.56 USD
List price
|
236.89 USD
List price
|
|
| Dimension | Ø 12 x 75 mm | Ø 12 x 62 mm | Ø 12 x 75 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 2 mm |
| Switching output | PNP Normally open (NO) | PNP Normally open (NO) | PNP Normally open (NO) |
| Switching frequency | 1000 Hz | 200 Hz | 1000 Hz |
| Housing material | Brass, nickel-plated | Stainless steel | Brass, nickel-plated |
| Material sensing surface | PEEK | PEEK | PEEK |
| Connection | Cable, 3.00 m, Silicone | Cable, 2.00 m, PTFE | Cable, 5.00 m, Silicone |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...120 °C | -25...160 °C | -25...120 °C |
| IP rating | IP68 | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA WEEE |
CE UKCA cULus WEEE |
