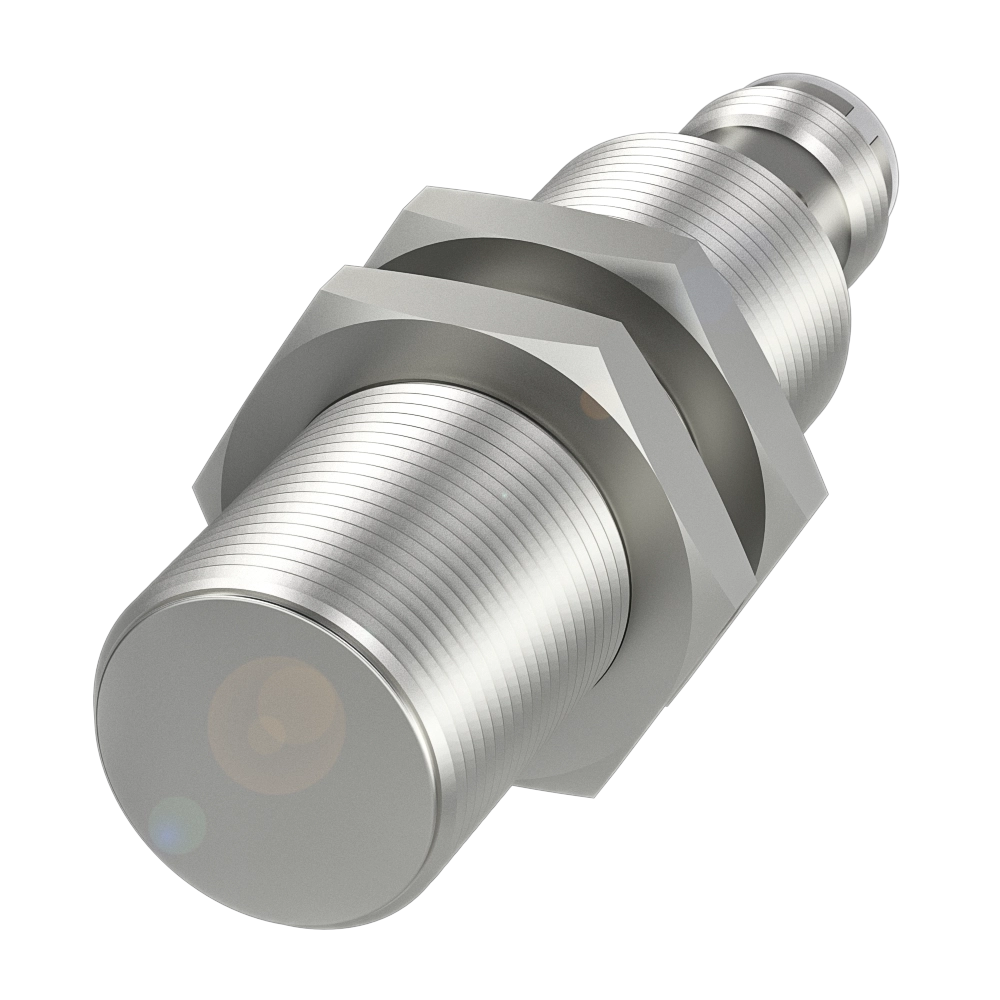

Pressure-rated inductive sensors

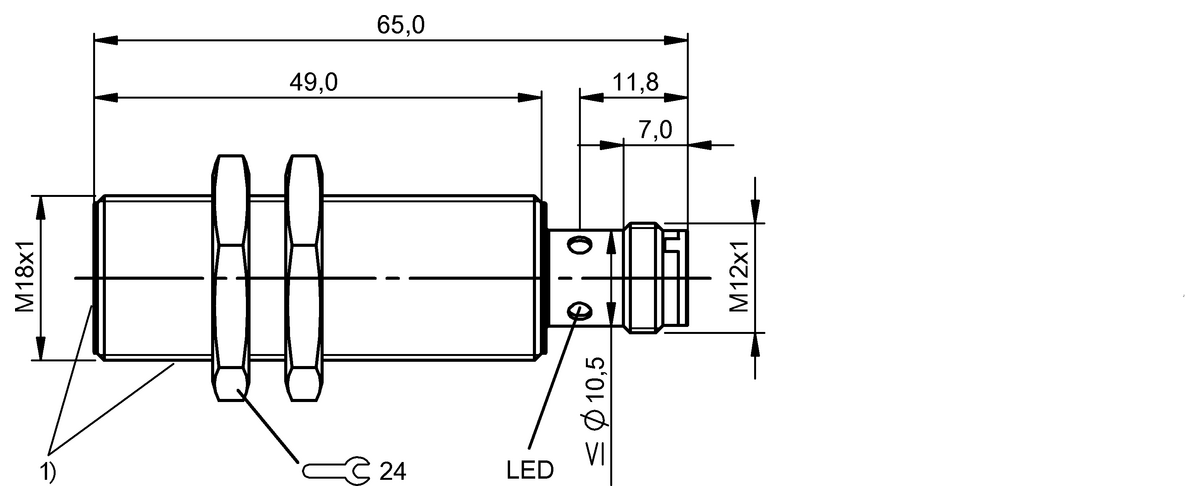

Dimension
Ø 18 x 65 mm
Style Housing
M18x1
Installation
for flush mounting
Range
7.2 mm
Switching output
PNP Normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|

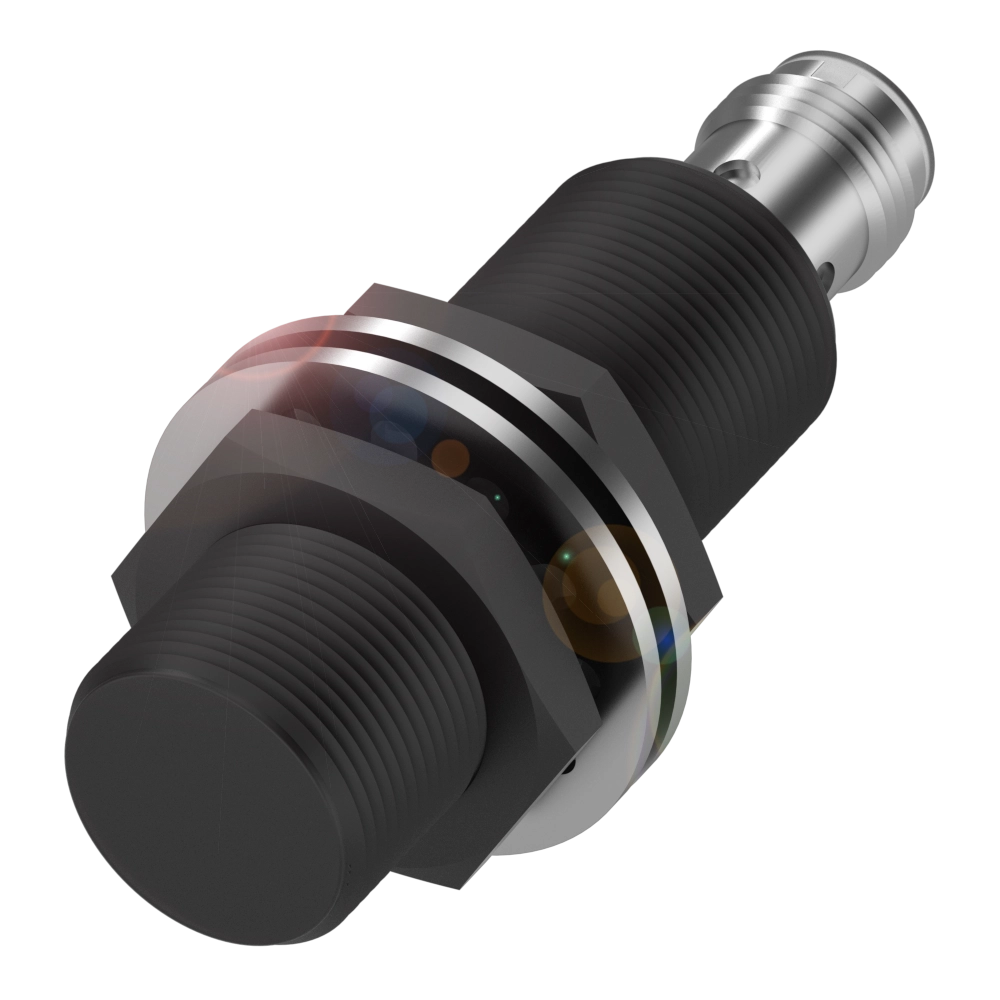

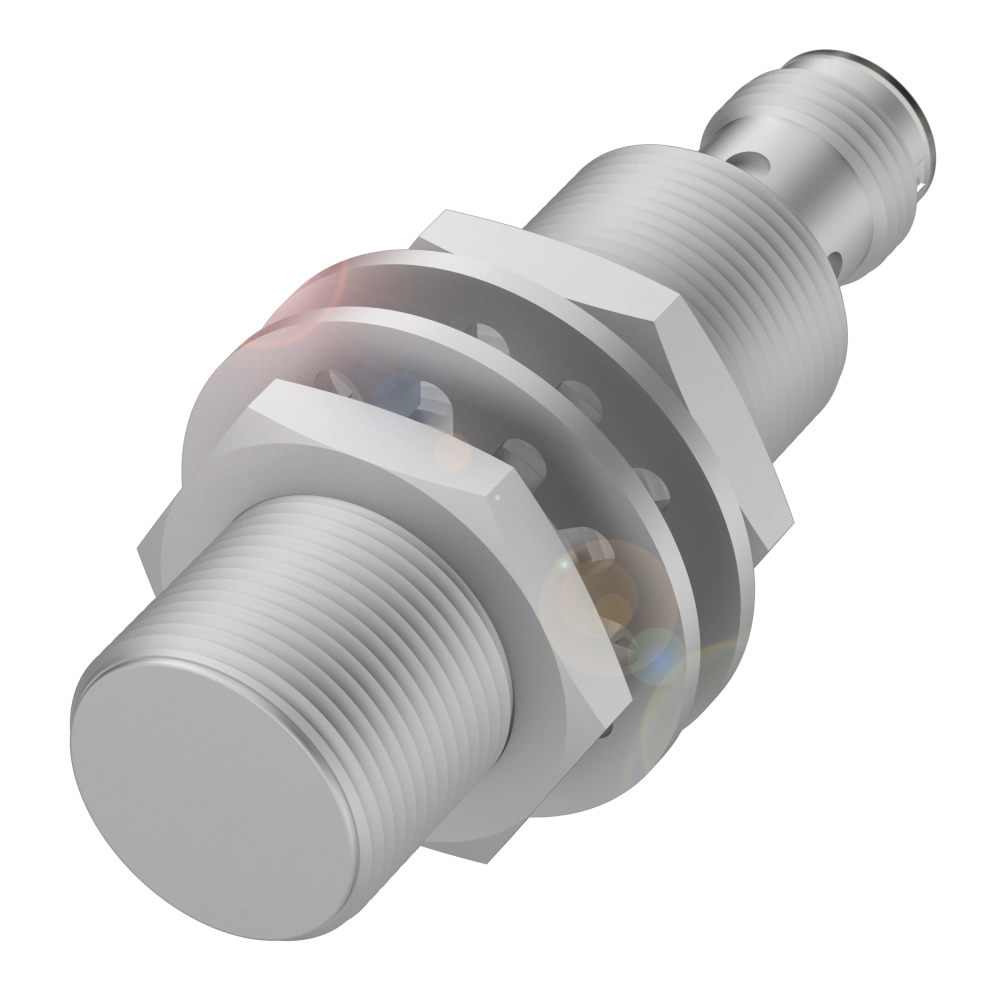

| BES M18EI-PSC72B-S04G-S | BES M18EI-PSC72B-S04G-S03 | BES M18EI-PSC72B-S04G-S01 | |
|
125.08 USD
List price
|
158.92 USD
List price
|
131.96 USD
List price
|
|
| Dimension | Ø 18 x 65 mm | Ø 18 x 65 mm | Ø 18 x 65 mm |
|---|---|---|---|
| Style Housing | M18x1 | M18x1 | M18x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 7.2 mm | 7.2 mm | 7.2 mm |
| Switching output | PNP Normally open (NO) | PNP Normally open (NO) | PNP Normally open (NO) |
| Switching frequency | 350 Hz | 350 Hz | 350 Hz |
| Housing material | Stainless steel | Stainless steel, coated, PTFE | Stainless steel, PTFE coated |
| Material sensing surface | Stainless steel | Stainless steel/coated/PTFE | Stainless steel |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| Pressure rating max. | 40 bar | 40 bar | 40 bar |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
