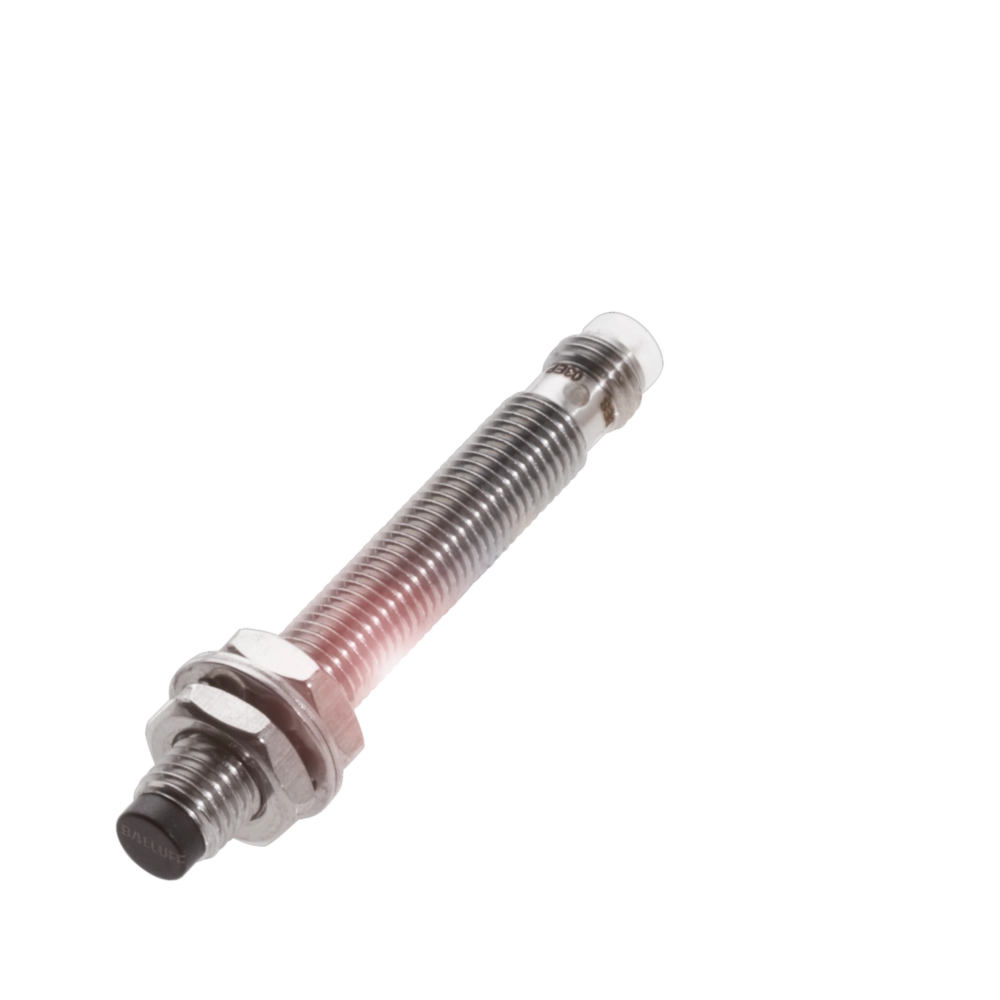

Inductive proximity switches and proximity sensors

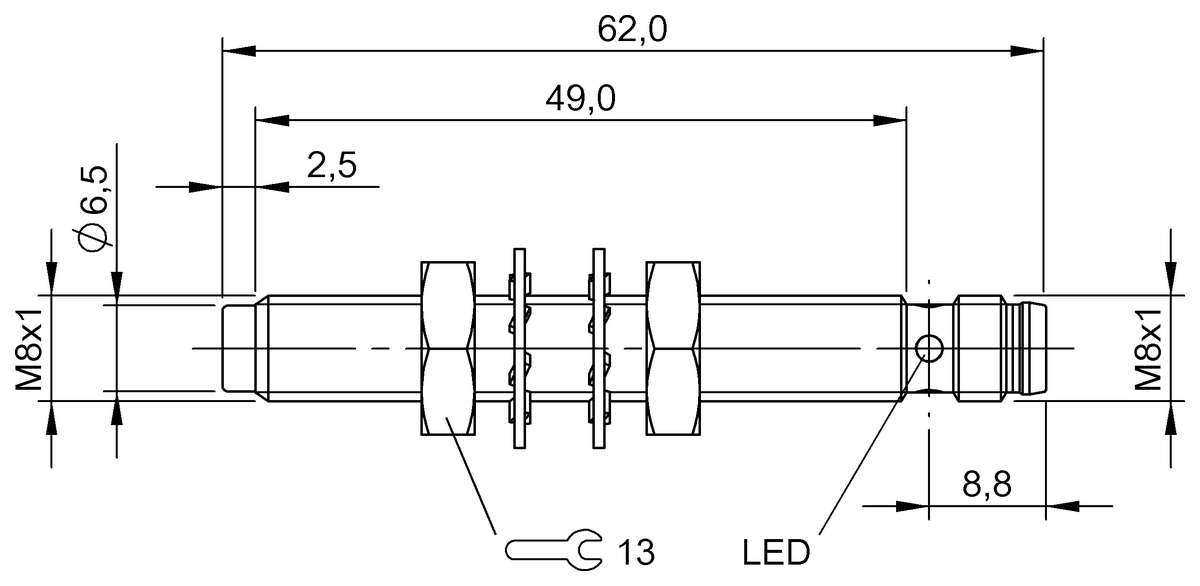

Dimension
Ø 8 x 62 mm
Style Housing
M8x1
Installation
non-flush
Range
2.5 mm
Switching output
PNP Normally open (NO)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES03EPBES M08EH-PSY25F-S49G-D01- |
BES001JBES M08EH-PSC40F-S49G60.63 USD |
BES05ZZBES M08MH-PSC30E-S49G43.37 USD |
|
| Dimension | Ø 8 x 62 mm | Ø 8 x 60 mm | Ø 8 x 60 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | non-flush | non-flush | non-flush |
| Range | 2.5 mm | 4 mm | 3 mm |
| Switching output | PNP Normally open (NO) | PNP Normally open (NO) | PNP Normally open (NO) |
| Switching frequency | 300 Hz | 4000 Hz | 900 Hz |
| Housing material | Stainless steel | Stainless steel | Brass, Nickel-free coated |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 18...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C, Temperature drift max. (% Sr) > 15% valid from 50...70 °C | -25...70 °C |
| IP rating | IP67 | IP68 | - |
| Approval/Conformity |
cULus CE EAC |
CE UKCA cULus WEEE |
CE UKCA WEEE cULus |
