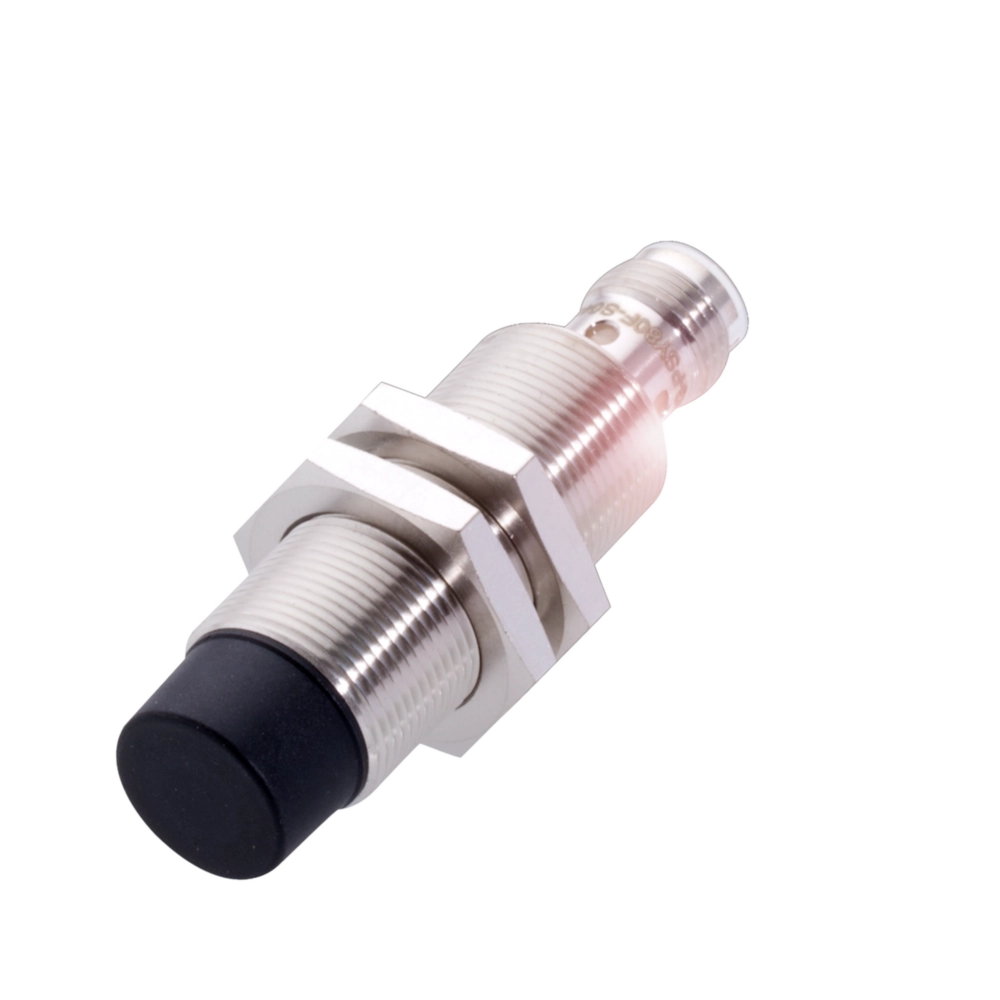

Inductive proximity switches and proximity sensors

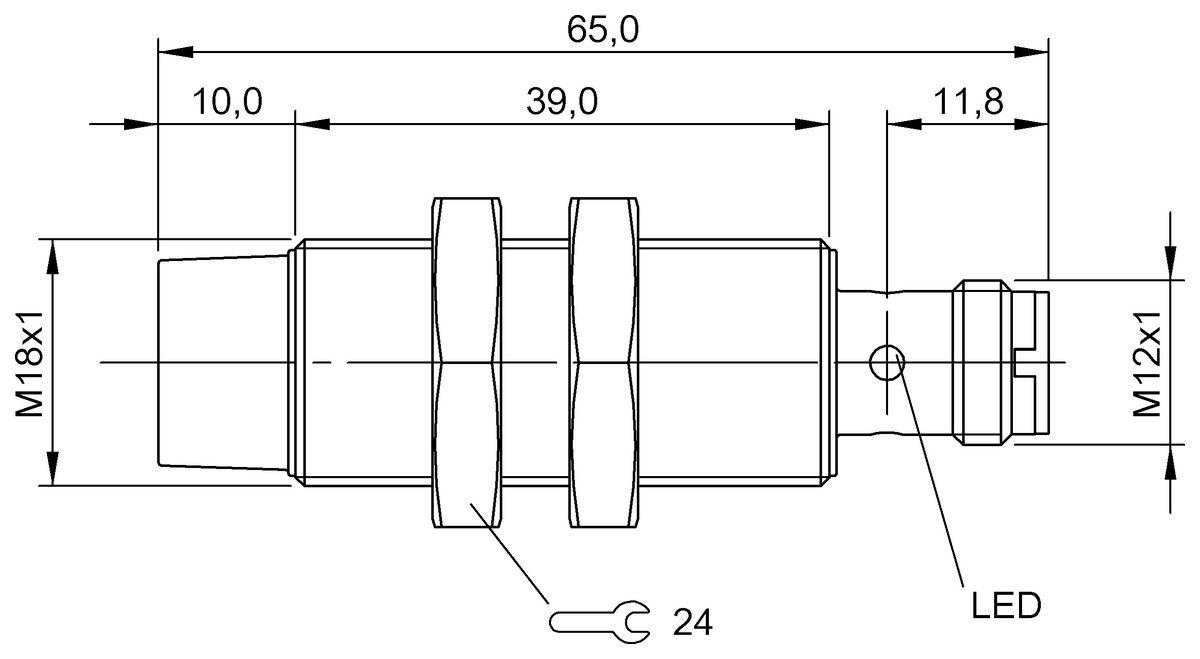

Dimension
Ø 18 x 65 mm
Style Housing
M18x1
Installation
non-flush
Range
8 mm
Switching output
PNP Normally open (NO)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES03EWBES M18MG-PSY80F-S04G-D01- |
BES05WNBES M18MG-PSC80E-S04G96.48 USD |
BES02JPBES 516-360-S4-CW190.73 USD |
|
| Dimension | Ø 18 x 65 mm | Ø 18 x 66 mm | Ø 18 x 65 mm |
|---|---|---|---|
| Style Housing | M18x1 | M18x1 | M18x1 |
| Installation | non-flush | non-flush | non-flush |
| Range | 8 mm | 8 mm | 8 mm |
| Switching output | PNP Normally open (NO) | PNP Normally open (NO) | PNP Normally open (NO) |
| Switching frequency | 300 Hz | 800 Hz | 200 Hz |
| Housing material | Brass, Nickel-free coated | Brass, Nickel-free coated | Brass, PTFE coated |
| Material sensing surface | PBT | PBT | PTFE |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 18...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...85 °C | -25...70 °C |
| IP rating | IP67 | - | - |
| Approval/Conformity |
CE cULus EAC |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
