Canceled

BES0576

BES M18MN-PFC50B-S04G-D11

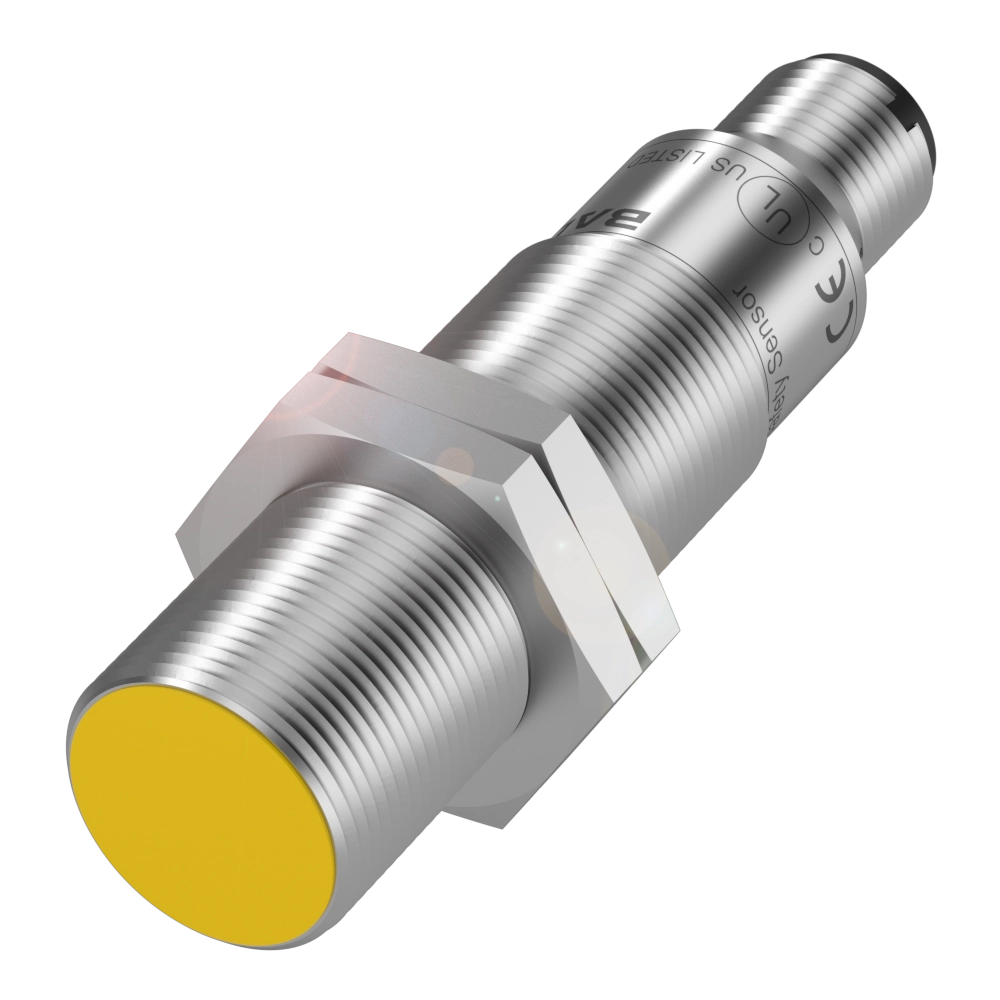

Inductive safety sensors

Performance Level
d
Safety category (EN ISO 13849-1)
2
SIL (IEC 61508)
2
SIL CL (EN 62061)
2
Response time max.
1 ms
Do you have any questions about the product? Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY

Quantity scale

Contact request
Key features
Performance Level
d
Safety category (EN ISO 13849-1)
2
SIL (IEC 61508)
2
SIL CL (EN 62061)
2
Response time max.
1 ms
Approval/Conformity
CE
cULus
TÜV
EAC
WEEE
Approach direction
any to sensing surface
Assured operating distance Sao
5 mm
Assured switch off distance Sar
7 mm
Connection
M12x1-Male, 4-pin, A-coded
Switching output
PNP Normally closed (NC);PNP OSSD
Installation
for flush mounting

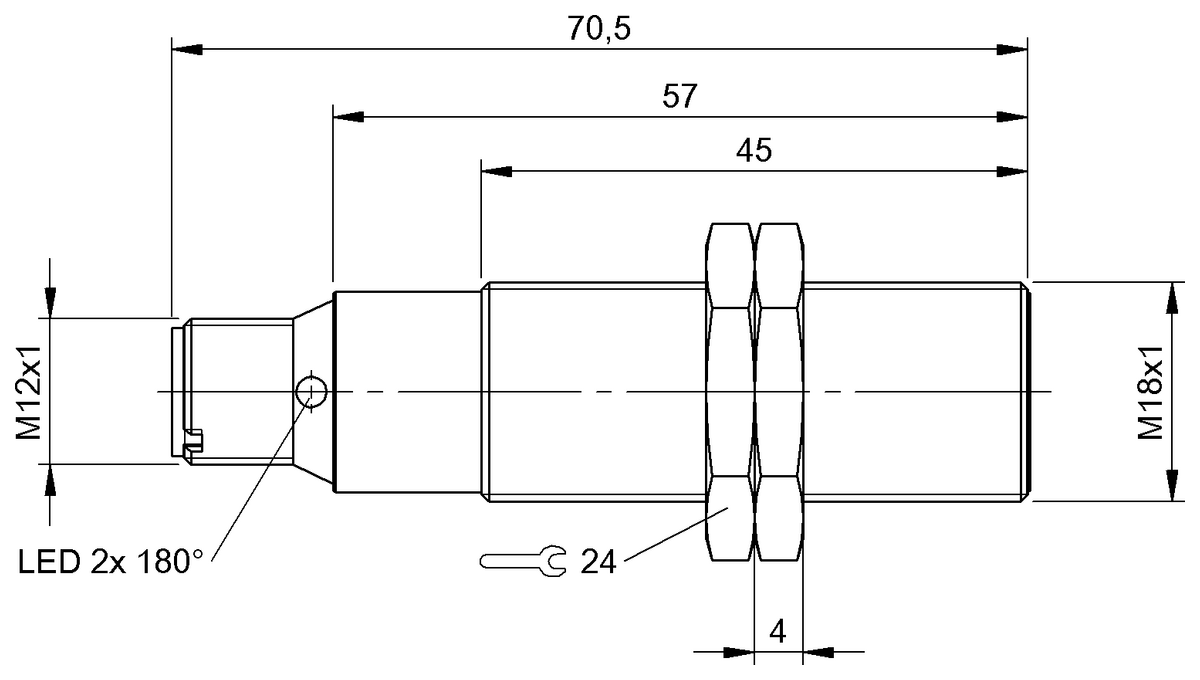

Dimension
Ø 18 x 70.5 mm
Ambient temperature
-25...70 °C, for service life ≤ 10 years 10…40 °C, for service life ≤ 20 years
IP rating
IP67
Housing material
Brass, White bronze
Classifications
ECLASS 10.1
27-27-24-01
ECLASS 11.0
27-27-24-01
ECLASS 12.0
27-27-41-01
ECLASS 13.0
27-27-41-01
ECLASS 14.0
27-27-41-01
ECLASS 5.1.4
27-27-24-01
ECLASS 6.2
27-27-24-01
ECLASS 8.1
27-27-24-01
ECLASS 9.0
27-27-24-01
ECLASS 9.1
27-27-24-01
ETIM 4.0
EC002714
ETIM 5.0
EC002714
ETIM 6.0
EC002714
ETIM 7.0
EC002714
ETIM 8.0
EC002714
ETIM 9.0
EC002714
UNSPSC 11
39121501
UNSPSC 7.0901
39121501
Energy consumption labeling
Energy consumption labeling

EPREL - European Product Database for Energy Labeling
