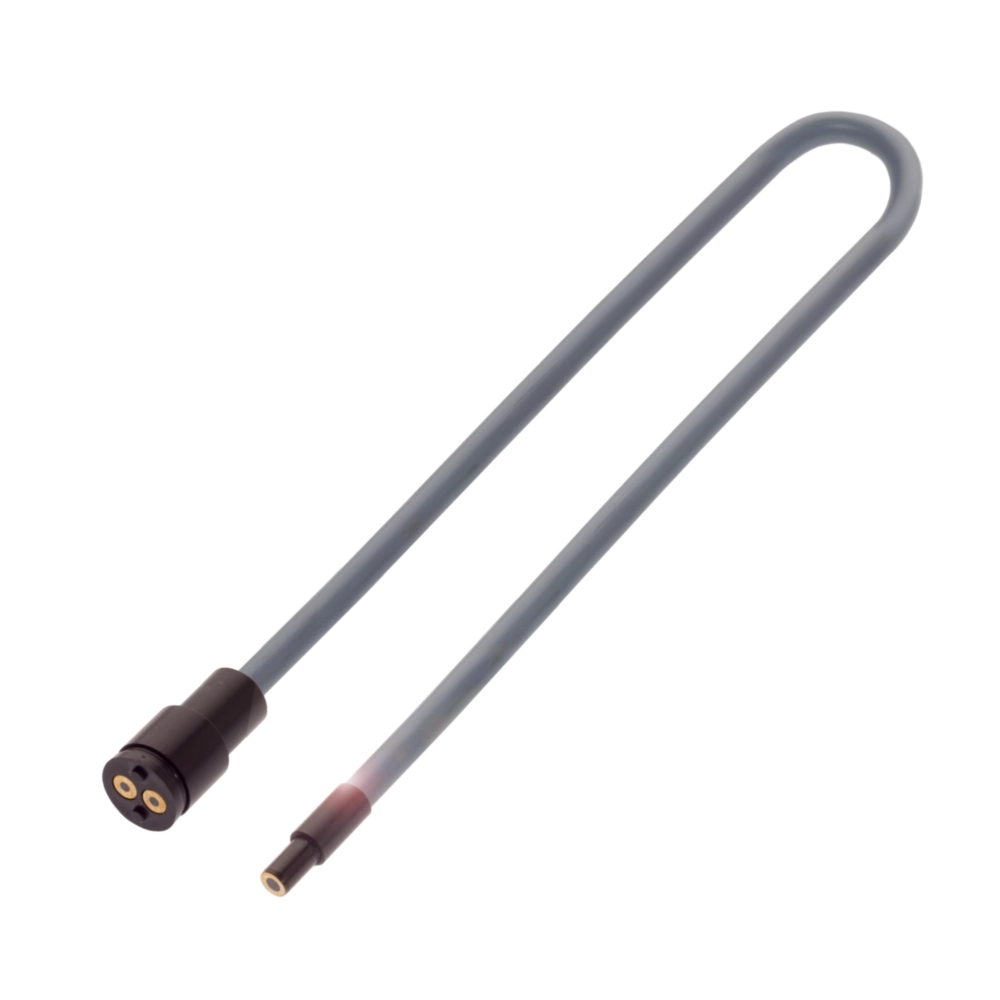

Cylindrical glass fibers with straight and angled optics
Version
Ø 6, standard
Reference base unit
BFB M18M-011-P-S4
Fiber type material
Glass
Cable length L
2 m
Material jacket
Silicone, on stainless steel
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BFO004TBFO 18V-XAC-SMG-30-2589.66 USD |
BFO002ZBFO 18A-XAC-SMG-30-2,5605.26 USD |
BFO002YBFO 18A-XAC-SMG-30-1,5385.87 USD |
|
| Version | Ø 6, standard | Ø 6, standard | Ø 6, standard |
|---|---|---|---|
| Reference base unit | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 |
| Fiber type material | Glass | Glass | Glass |
| Cable length L | 2 m | 2.5 m | 1.5 m |
| Material jacket | Silicone, on stainless steel | Silicone, on stainless steel | Silicone, on stainless steel |
| Range | 20 mm | 20 mm | 20 mm |
| Ambient temperature | -40...150 °C | -40...150 °C | -40...150 °C |
| Active surface, fibers | Bundle Ø 3.0 mm | Bundle Ø 3.0 mm | Bundle Ø 3.0 mm |
| Active surface, fiber arrangement | Segmented bundle | Segmented bundle | Segmented bundle |
| IP rating | IP67 | IP67 | IP67 |
