Product description
Our BGL fork sensors (with transmitter and receiver in one housing) are already aligned. This reduces effort and saves valuable time during commissioning and facilitates reliable processes.
In terms of accuracy, the fork sensors from Balluff are unrivaled for small-component and detail detection as well as operational reliability. Achieve the best results with our laser fork sensors for precise positioning, secure detection of fast movement sequences, small parts in robotics, and automation.
Our comprehensive portfolio also offers you reliable solutions for difficult applications. Some special applications include transparency detection, water detection, and web edge control.
- Series
- A
- Dimension
- 10 x 70 x 88 mm
- Fork opening
- 50 mm
- Interface
- PNP NO/NC
- Principle of operation
- Fork sensor
- Principle of optical operation
- Through-beam sensor
- Beam characteristic
- Divergent
- Light type
- Infrared
- Light spot size
- Ø 2.5 mm Light exit
- Connection
- Connector, M8x1-Male, 3-pin
- Housing material
- Zinc, Die casting, Painted
- Material sensing surface
- Glass
- Operating voltage Ub
- 10...30 VDC
- Approval/Conformity
- CE, cULus, EAC, WEEE
Technical documentation
-
Datasheet
-
MTTF Certificate
-
Disposal
Product documentation
-
Declaration of Compliance
-
Installation/Assembly manual
-
Manual

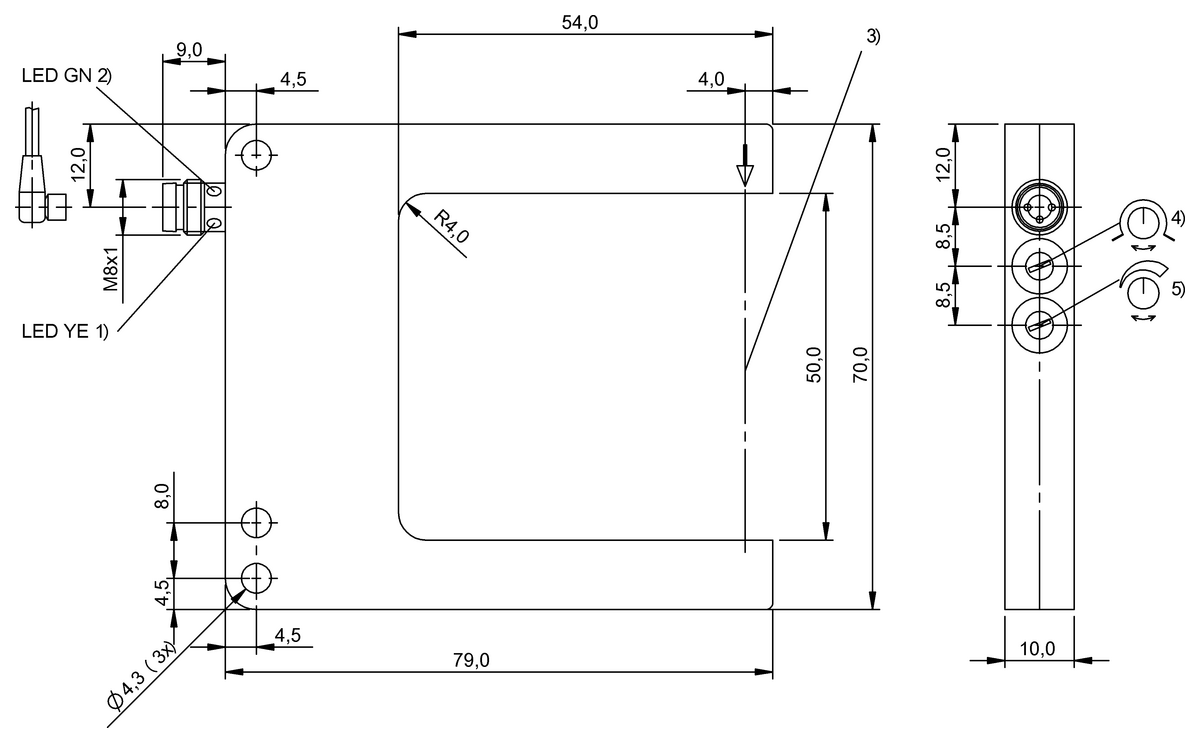

Technical drawing
-
Product View
- ETIM 4.0
- EC002720
- ETIM 5.0
- EC002720
- ETIM 6.0
- EC002720
- ETIM 7.0
- EC002720
- UNSPSC 11
- 39121528
- UNSPSC 7.0901
- 39121528
- [email protected] 6.0
- 27-27-09-09
- [email protected] 8.1
- 27-27-09-09
