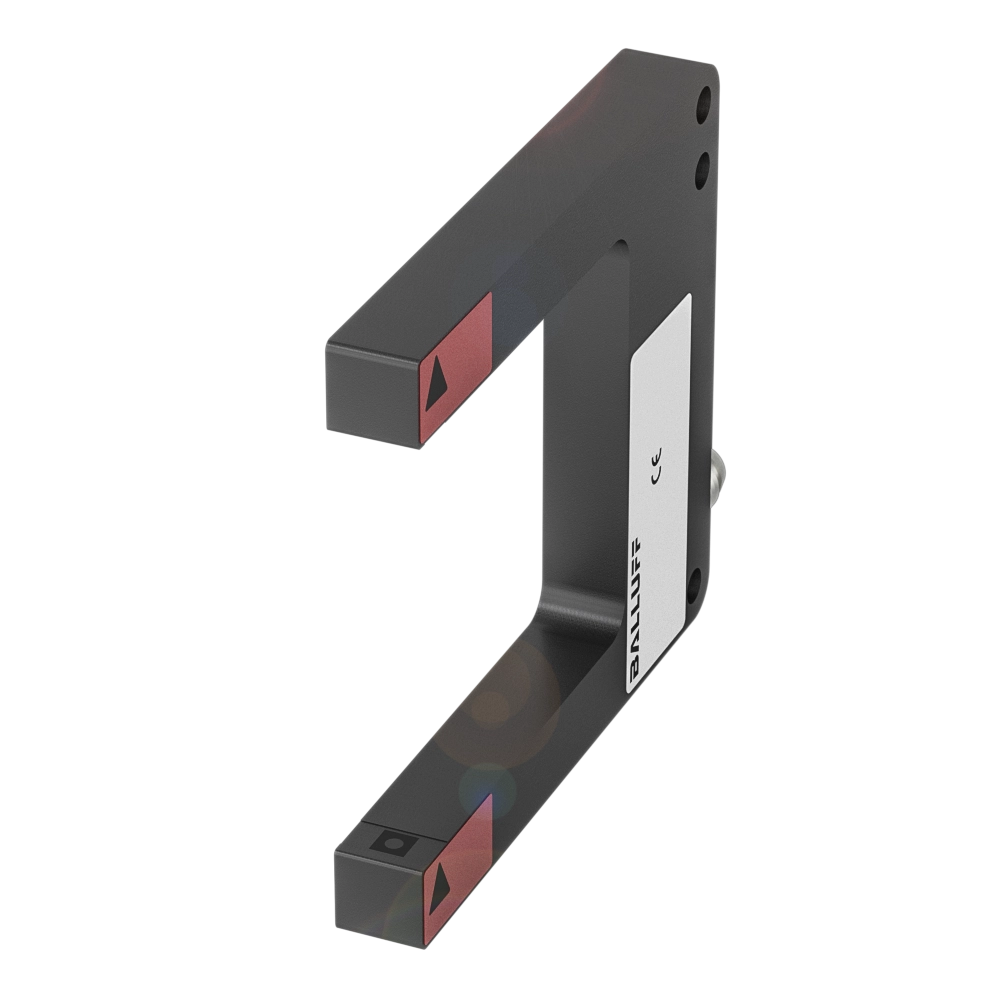

Similar Illustration
Replacement available
Only CAD model download is supported
Fork sensors Entry Line
Dimension
10 x 70 x 88 mm
Fork opening
50 mm
Interface
Push-pull NO(PNP)/NC(NPN)
Principle of operation
Fork sensor
Principle of optical operation
Through-beam sensor
Recommended alternative
BGL001T
Fork sensors
BGL 50A-007-S49
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|
| BGL 50A-100-S49 | BGL 50A-007-S49 | |
|
102.13 USD
List price
|
224.42 USD
List price
|
|
| Dimension | 10 x 70 x 88 mm | 10 x 70 x 88 mm |
|---|---|---|
| Fork opening | 50 mm | 50 mm |
| Interface | Push-pull NO(PNP)/NC(NPN) | PNP NO/NC |
| Principle of operation | Fork sensor | Fork sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Beam characteristic | Divergent | Divergent |
| Light type | LED Red light | Infrared |
| Light spot size | Ø 1 mm Light exit | Ø 2.5 mm Light exit |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin |
| Housing material |
Zinc, Die casting, coated, black PUR, PA 6.6 |
Zinc, Die casting, Painted |
| Material sensing surface | Glass | Glass |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA WEEE cULus |
CE UKCA cULus WEEE |
| Series | - | A |
