BID000E

BID R03K-4R1S0-O20ZZ0-S92

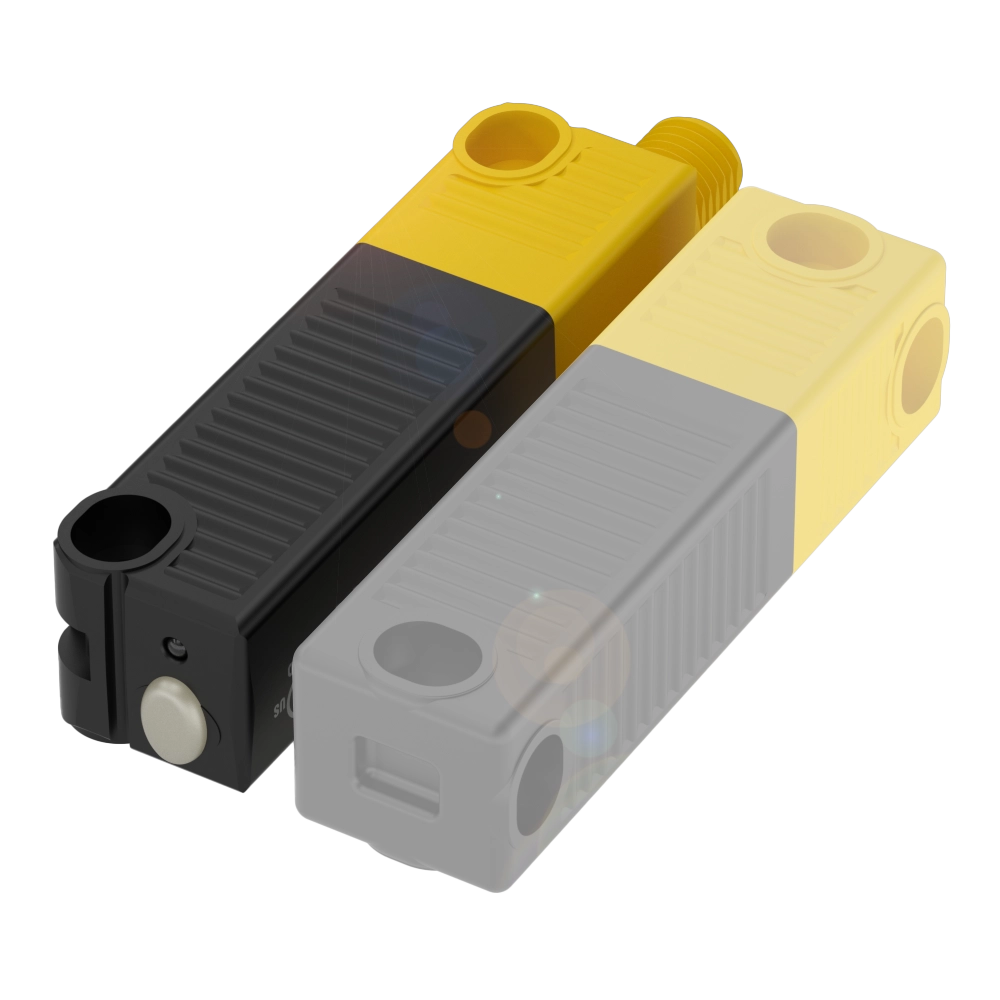

Transponder-coded safety sensors

Special characteristics
Washdown
Performance Level
e
Safety category (EN ISO 13849-1)
4
SIL (IEC 61508)
3
SIL CL (EN 62061)
3
Do you have any questions about the product? Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY

Quantity scale

Contact request
Key features
Special characteristics
Washdown
Performance Level
e
Safety category (EN ISO 13849-1)
4
SIL (IEC 61508)
3
SIL CL (EN 62061)
3
Coding level (EN ISO 14119)
low
Response time max.
100 ms
Approval/Conformity
CE
cULus
TÜV
Ecolab
WEEE
Operating principle
non-contact (RFID)
Approach direction
any to sensing surface
Actuator retention force
18 N
Assured operating distance Sao
10 mm
Assured switch off distance Sar
20 mm
Connection
Connector, M12x1, 5-pin
Switching output
2x PNP OSSD
Installation
for flush mounting

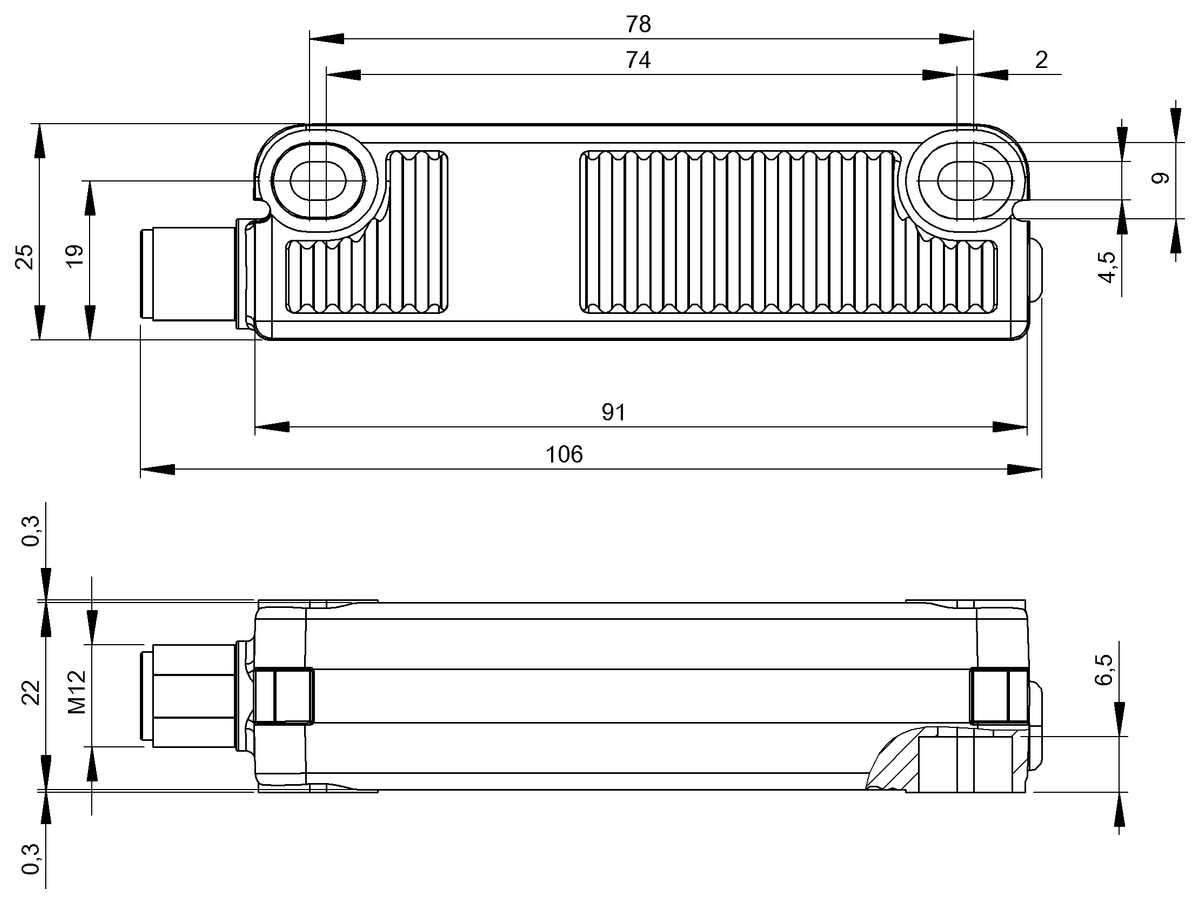

Dimension
106 x 25 x 22 mm
Ambient temperature
-25...70 °C
IP rating
IP65
IP67
IP69
Housing material
Thermoplastic, glass-fiber reinforced
Classifications
ECLASS 10.1
27-27-24-03
ECLASS 11.0
27-27-24-03
ECLASS 12.0
27-27-46-01
ECLASS 13.0
27-27-46-01
ECLASS 14.0
27-27-46-01
ECLASS 5.1.4
27-27-24-03
ECLASS 6.2
27-27-24-03
ECLASS 8.1
27-27-24-03
ECLASS 9.0
27-27-24-03
ECLASS 9.1
27-27-24-03
ETIM 7.0
EC002592
ETIM 8.0
EC002592
ETIM 9.0
EC002592
UNSPSC 11
39121501
UNSPSC 7.0901
39121501
