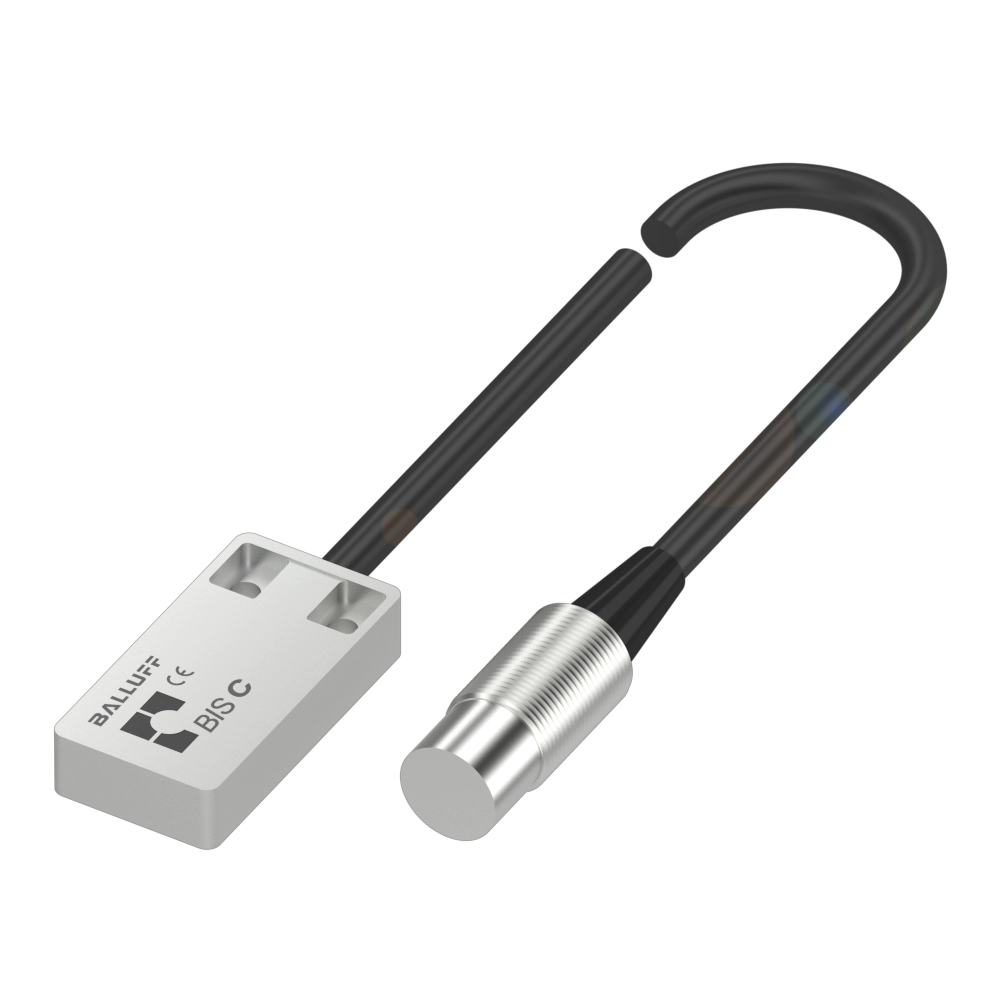

LF data couplers (70/455 kHz)
Style 2
M16x1
Antenna type
round
Cable length L
0.20 m
Storage temperature
-20...85 °C
Ambient temperature
0...70 °C
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Discontinued
Recommended alternative
|
|
|
|
|
|
BIS00JCBIS C-380-05/06-00,2- |
BIS00JEBIS C-380-05/06-02- |
|
| Style 2 | M16x1 | M16x1 |
|---|---|---|
| Antenna type | round | round |
| Cable length L | 0.20 m | 2.00 m |
| Storage temperature | -20...85 °C | -20...85 °C |
| Ambient temperature | 0...70 °C | 0...70 °C |
| Housing material | Brass, ABS-GF16, nickel-plated | Brass, ABS-GF16, nickel plated |
| IP rating | IP67 | IP67 |
| Installation |
metal-free (clear zone) on metal flush in metal |
metal-free (clear zone) on metal flush in metal |
| Approval/Conformity |
CE WEEE |
CE WEEE EAC |
