BIS00WN

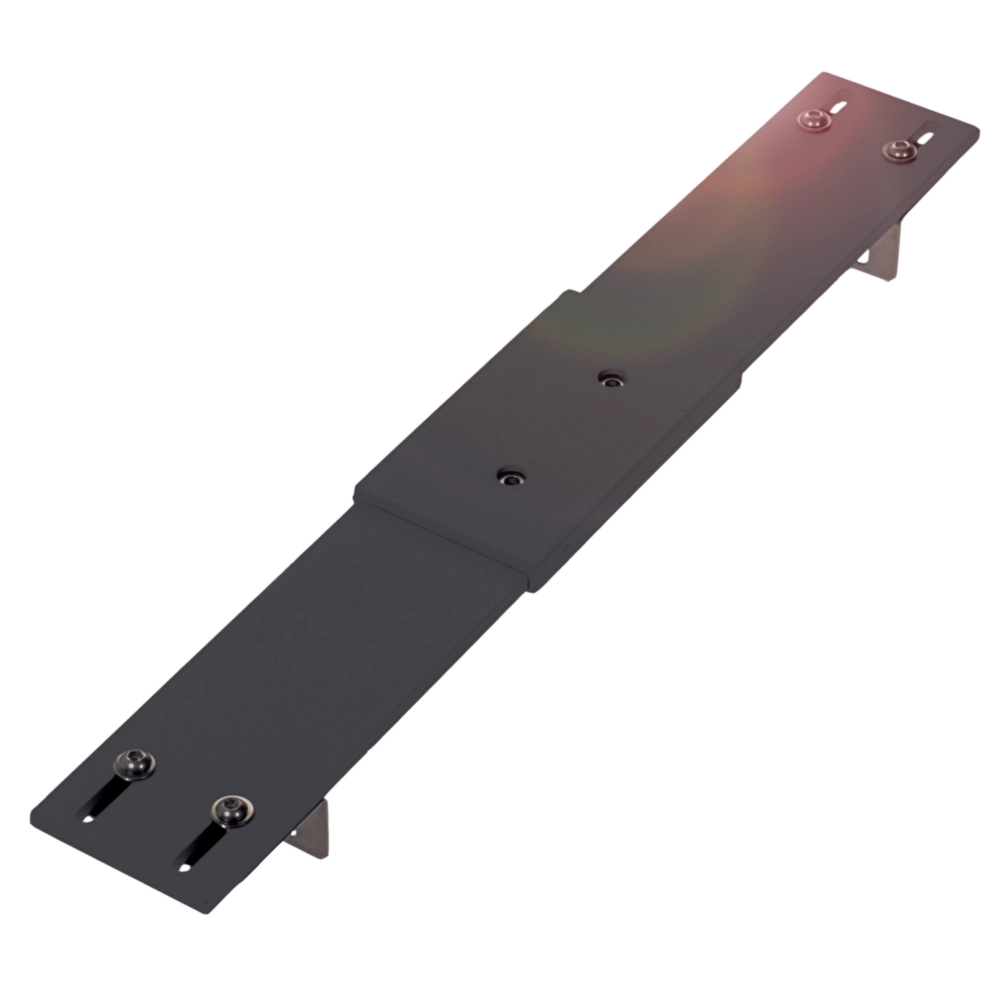

HF read/write heads and antennas (13.56 MHz)
Typecode:
BIS M-370-000-A02
Loading...
Which attributed do you want to keep?
- Product Group
- HF (13.56 MHz)

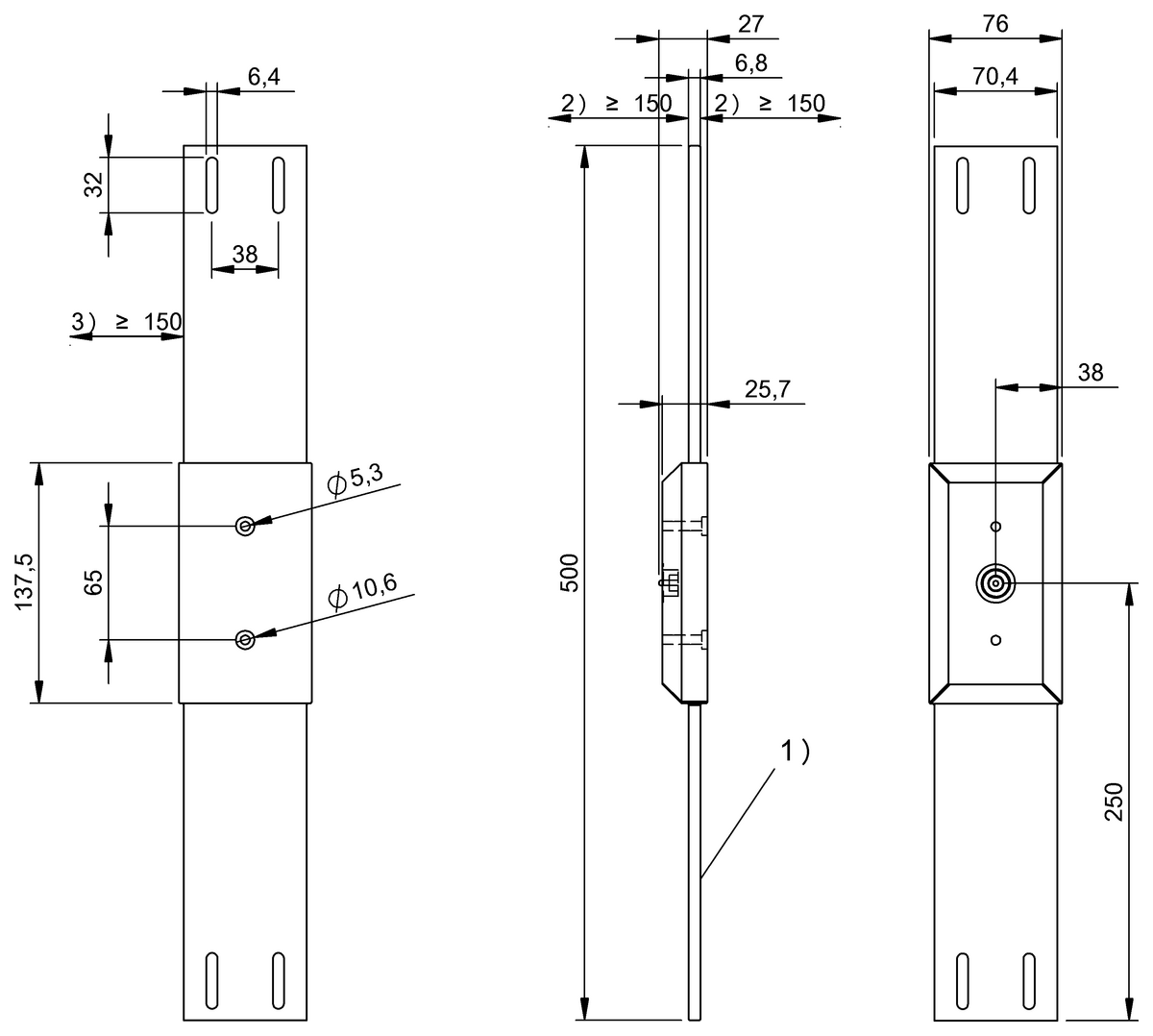

- Dimension
- 500 x 27 x 76 mm
- Installation
- metal-free (clear zone)
- Antenna type
- round
- Supported data carrier types
-
DIN ISO 14443
DIN ISO 15693 - Connection
- Connector, RCA
- Housing material
- PA
- Ambient temperature
- -20...50 °C
- IP rating per IEC 60529
- IP65
- Approval/Conformity
-
CE
WEEE
Technical documentation
Product documentation
-
Declaration of Compliance
-
Installation/Assembly manual
No recommended accessories available.
- ECLASS 10.1
- 27-28-04-01
- ECLASS 11.0
- 27-28-04-01
- ECLASS 4.1
- 27-28-04-01
- ECLASS 5.1.3
- 27-28-04-01
- ECLASS 5.1.4
- 27-28-04-01
- ECLASS 6.0
- 27-28-04-01
- ECLASS 8.1
- 27-28-04-01
- ECLASS 9.0
- 27-28-04-01
- ECLASS 9.1
- 27-28-04-01
- ETIM 6.0
- EC002998
- ETIM 6.0
- EC002998
- UNSPSC 11
- 43211710
- UNSPSC 7.0901
- 43211710
