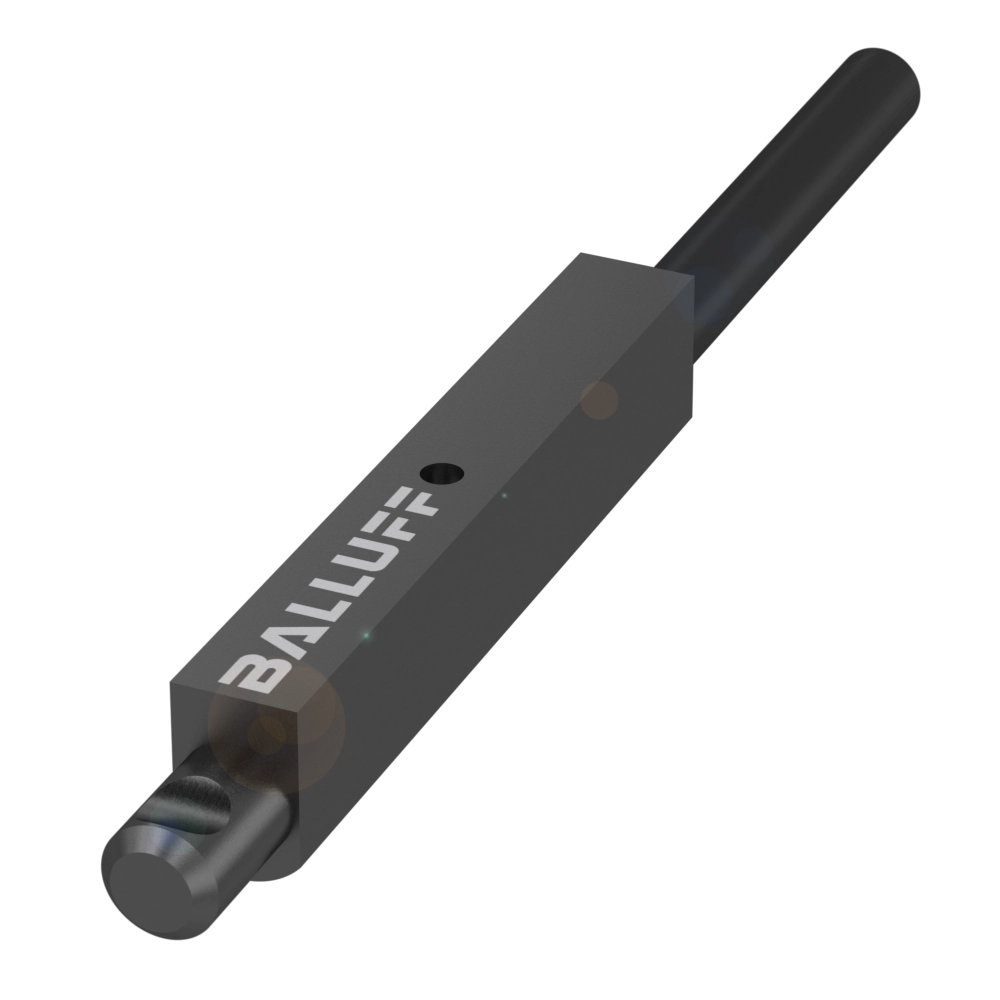

Cylinder sensors for multiple slot shapes
Slot type
variable
Dimension
25.5 x 3 x 4.5 mm
Principle of operation
Magnetic field sensor
Cable
PUR, 3 m
Application
miniaturized actuators
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BMF002ZBMF 303K-NS-C-2-PU-03- |
BMF0032BMF 303K-NS-C-2A-PU-0377.86 USD |
|
| Slot type | variable | variable |
|---|---|---|
| Dimension | 25.5 x 3 x 4.5 mm | 25.5 x 3 x 4.5 mm |
| Principle of operation | Magnetic field sensor | Magnetic field sensor |
| Cable | PUR, 3 m | PUR, 3 m |
| Application | miniaturized actuators | - |
| Mounting part | Mounting bracket BMF 303-HW* | - |
| Housing material | LCP | LCP |
| Switching output | NPN Normally open (NO) | NPN Normally open (NO) |
| Switching frequency | 10000 Hz | 30000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
cULus CE |
cULus CE UKCA WEEE |
