BNI00FU

Name: BNI00FU
Brand: Balluff
SKU: BNI00FU
Availability: OutOfStock

BNI IOL-752-V09-K007-C12

IO-Link valve interface

Interface

IO-Link 1.1

Operating voltage Ub

18...30.2 VDC

Connection (COM 1)

M12x1-Male, 5-pin, A-coded

Cable length L

640 mm

Outputs, number

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BNI00FU BNI IOL-752-V09-K007-C12 -	BNI006T BNI IOL-751-V11-K007 217.15 USD	BNI006M BNI IOL-751-V09-K007 222.87 USD
Interface	IO-Link 1.1	IO-Link 1.1	IO-Link 1.1
Operating voltage Ub	18...30.2 VDC	18...30.2 VDC	18...30.2 VDC
Connection (COM 1)	M12x1-Male, 5-pin, A-coded	M12x1-Male, 5-pin, A-coded	M12x1-Male, 5-pin, A-coded
Cable length L	640 mm	0.6 m	0.6 m
Outputs, number	16	16	16
Current sum UA, actuator	4 A	4 A	4 A
Function	5-pin connection Power Aux on Pin 2 also 0V on Pin 5	4-pin connection Power Aux on Pin 2	4-pin connection Power Aux on Pin 2
Housing material	PA	PA	PA

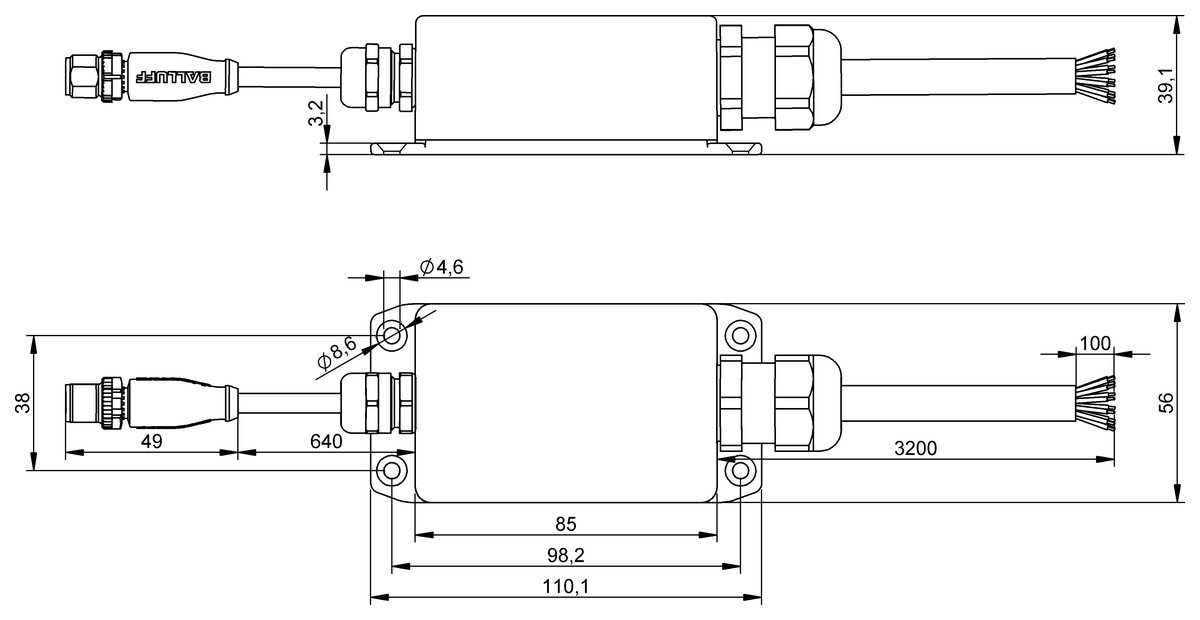

Dimension	56 x 39.1 x 110.1 mm	53 x 61 x 12.5 mm	53 x 61 x 12.5 mm
Ambient temperature	-5...55 °C	-5...55 °C	-5...55 °C
IP rating	IP40, plugged in	IP40, plugged in	IP40, plugged in
Transfer rate	COM2 (38.4 kBaud)	COM2 (38.4 kBaud)	COM2 (38.4 kBaud)
Process data cycle min.	3.0 ms	3.0 ms	3.0 ms
Process data OUT	2 bytes	2 bytes	2 bytes
