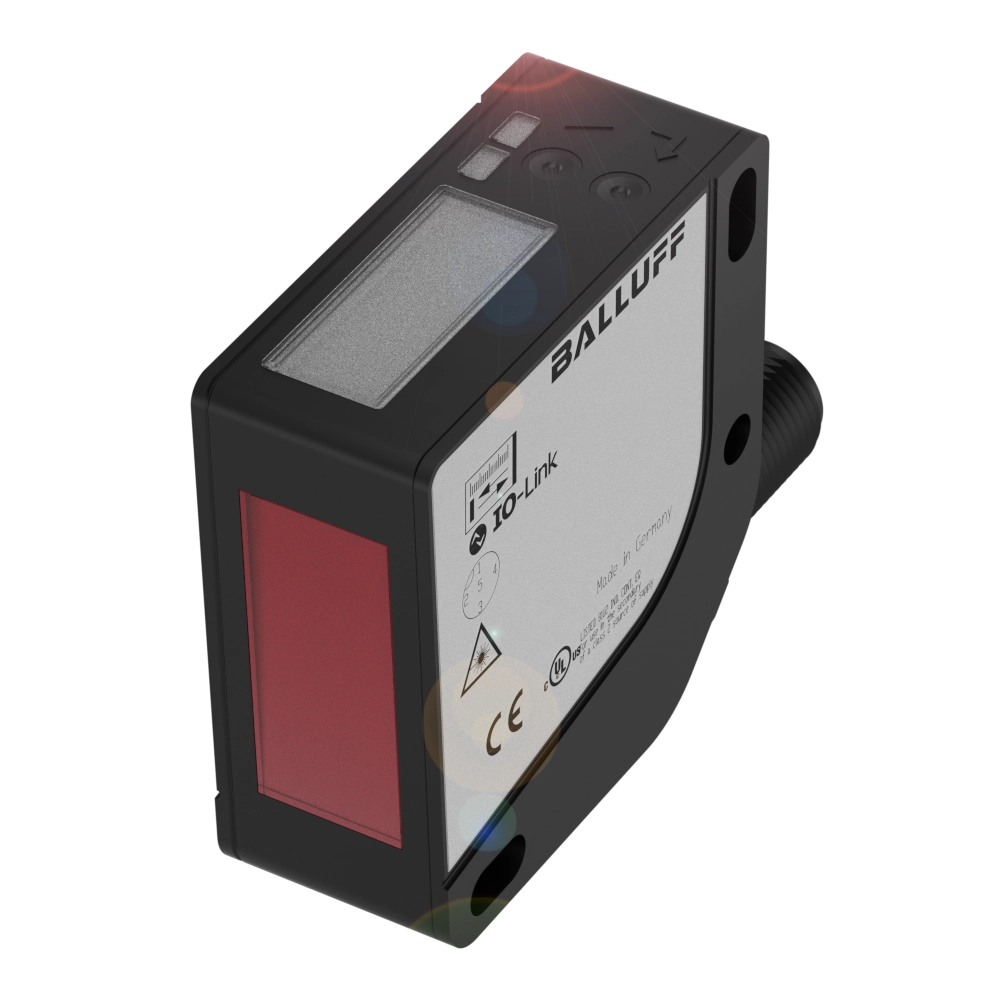

Photoelectric distance sensors
Series
24K

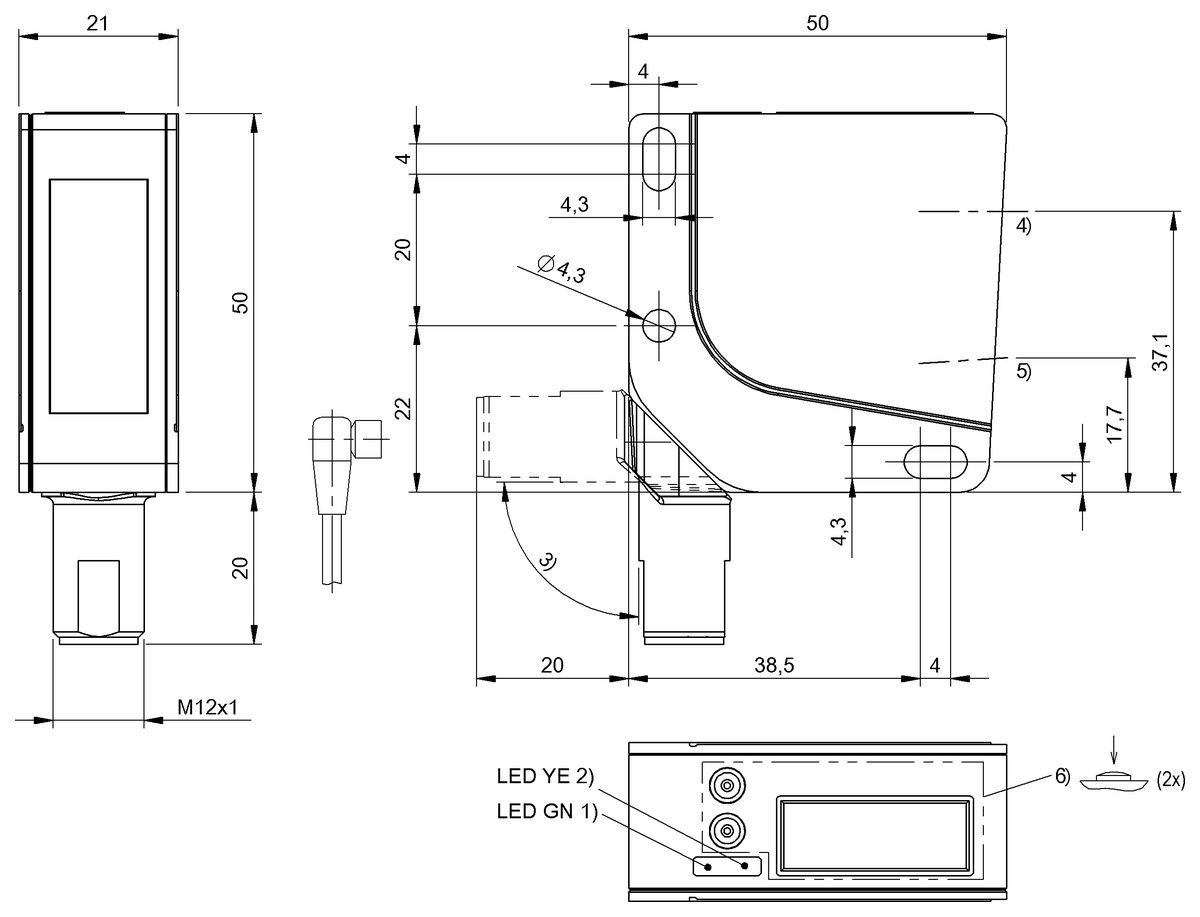

Dimension
50 x 21 x 50 mm
Interface
IO-Link 1.0
Principle of operation
Photoelectric distance sensor BOD
Principle of optical operation
Triangulation
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BOD0026BOD 24K-LI05-S92- |
BOD002NBOD 24K-LPI08-S41,743.51 USD |
|
| Series | 24K | 24K |
|---|---|---|
| Dimension | 50 x 21 x 50 mm | 50 x 21 x 50 mm |
| Interface | IO-Link 1.0 |
IO-Link 1.1 Analog, voltage/Analog, current selectable 4…20 mA 0…10 V 2x PNP/NPN NO/NC |
| Principle of operation | Photoelectric distance sensor BOD | Photoelectric sensor |
| Principle of optical operation | Triangulation | Triangulation |
| Beam characteristic | Divergent | Divergent |
| Light type | Laser Red light | Laser Red light |
| Light spot size | 1 x 1 mm at 450 mm | 1.2 x 1.2 mm at 650 mm |
| Range | 50...650 mm | 50...650 mm |
| Accuracy | ±1 % | ±1 % |
| Repeat accuracy | ± 0.5 % | ± 50 µm |
| Resolution | ≤ 100 µm | ≤ 100 µm |
| Connection | Connector, M12x1-Male, 5-pin | Connector, M12x1-Male, 4-pin |
| Housing material | Plastic | Plastic |
| Operating voltage Ub | 18...30 VDC | 18...30 VDC |
| Approval/Conformity |
CE cULus EAC WEEE |
CE cULus WEEE |
