BOS00JM

Available

Diffuse sensor with background suppression

Typecode:

BOS 18KF-PA-1HA-S4-C

Loading...
Series
18KF

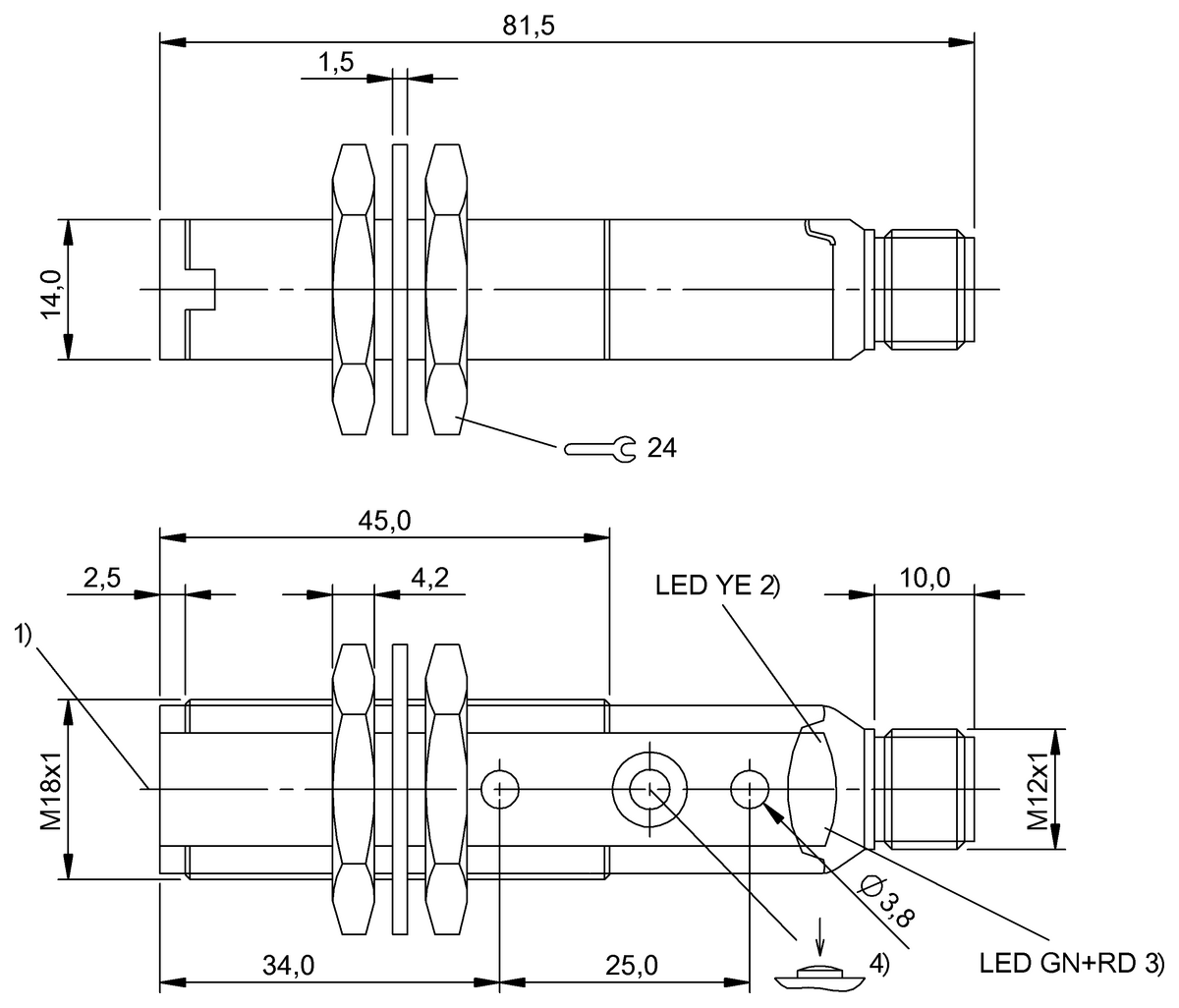

Dimension
Ø 18 x 96 mm
Interface
PNP Normally open (NO)
PNP Normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, Triangulation
Special optical feature
Background suppression
Light type
LED Red light
Light spot size
Ø 8 mm at 100 mm
Range
50...100 mm
Connection
Connector, M12x1-Male, 4-pin
Housing material
PBT
Material sensing surface
PMMA
Operating voltage Ub
10...30 VDC
Approval/Conformity
CE
cULus
WEEE
Trademark
Global
