Cylindrical retro-reflective photoelectric sensors with M8 thread and different types of light
Series
08E

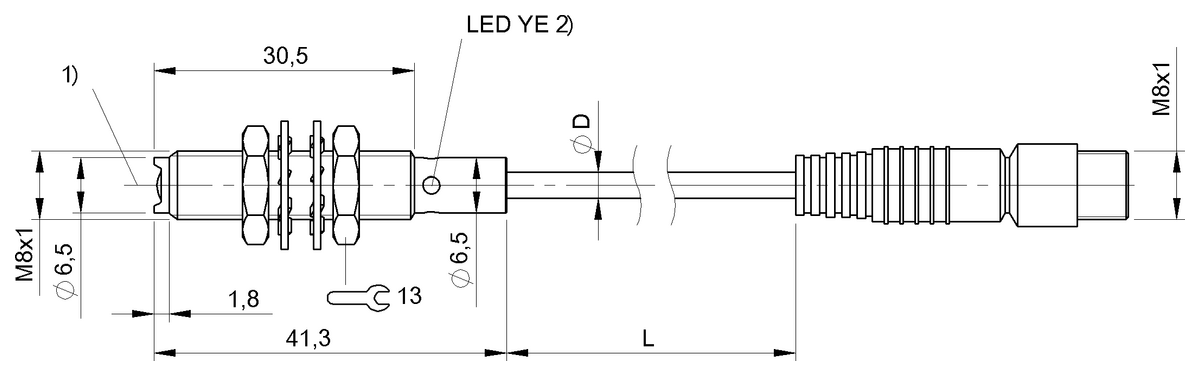

Dimension
Ø 8 x 40 mm
Interface
PNP Normally open (NO)
Principle of operation
Photoelectric sensor
Principle of optical operation
Retroreflective sensor
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BOS01RLBOS 08E-PS-PR20-00,2-S49147.98 USD |
BOS01RKBOS 08E-PS-PR20-S49147.98 USD |
BOS01RNBOS 08E-PO-PR20-00,2-S49193.43 USD |
|
| Series | 08E | 08E | 08E |
|---|---|---|---|
| Dimension | Ø 8 x 40 mm | Ø 8 x 40 mm | Ø 8 x 40 mm |
| Interface | PNP Normally open (NO) | PNP Normally open (NO) | PNP Normally closed (NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor | Retroreflective sensor | Retroreflective sensor |
| Beam characteristic | Divergent | Divergent | Divergent |
| Light type | LED Red light | LED Red light | LED Red light |
| Light spot size | Ø 3.0 mm Light exit | Ø 3.0 mm Light exit | Ø 3.0 mm Light exit |
| Range | 30 mm...1 m | 30 mm...1 m | 30 mm...1 m |
| Connection | Cable with connector, 0.20 m, PUR | Connector, M8x1-Male, 3-pin | Cable with connector, 0.20 m, PUR |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PMMA | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
