Similar Illustration
Canceled
Similar Illustration
Only CAD model download is supported

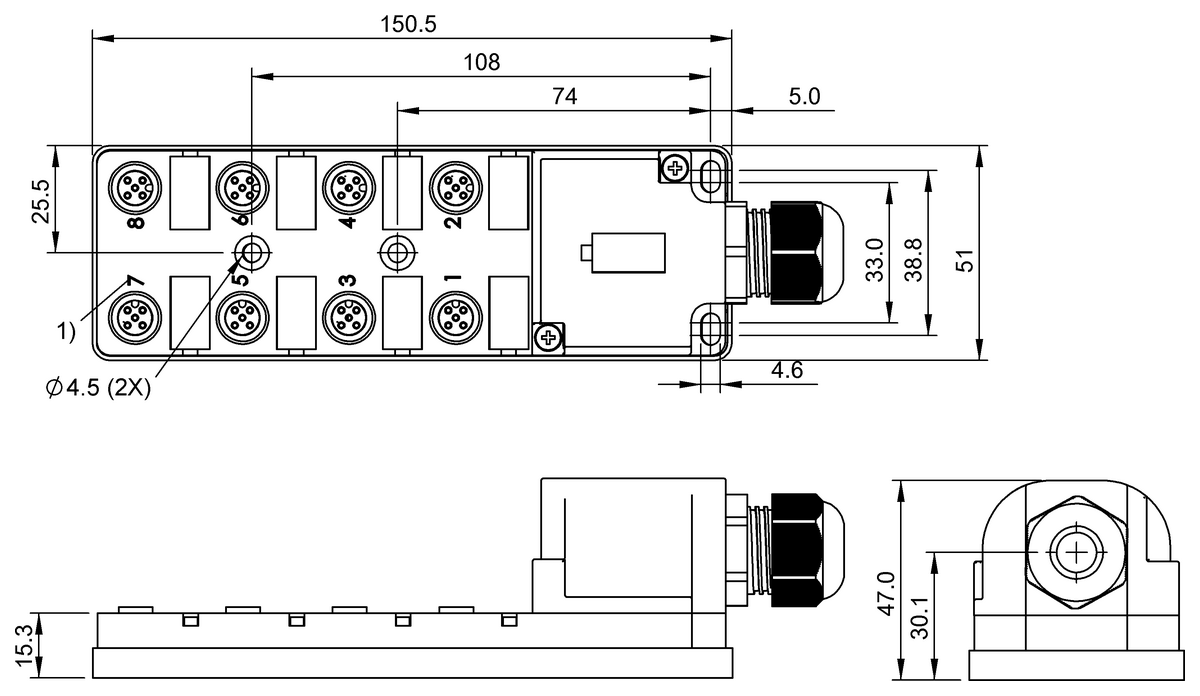

Junction blocks
Connection slots
8x M12x1-Female, 5-pin
Power indicator
LED green
Switching function display
16x LED yellow
Signal type
NPN
Connection (COM 1)
Screw terminals on circuit board
Recommended alternative
BPI008U
Junction blocks
BPI 8M4A5N-2K-B0-SM6LT
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
Discontinued
|
Discontinued
Recommended alternative
|
|
|
|
|
|
| BPI 8M4A5N-2K-MC-HHFL | BPI 8M4A5N-2K-B0-SM6LT | |
|
-
List price
|
185.90 USD
List price
|
|
| Connection slots | 8x M12x1-Female, 5-pin | 8x M12x1-Female, 5-pin |
|---|---|---|
| Power indicator | LED green | LED green |
| Switching function display | 16x LED yellow | 16x LED yellow |
| Signal type | NPN | NPN |
| Connection (COM 1) | Screw terminals on circuit board | M23x1-Male, 19-pin |
| Operating voltage Ub | 30 VDC | 10...30 VDC |
| Output current max. | 3 A | 4 A |
| Total current max. | 8 A | 8 A |
| Ambient temperature | -20...80 °C | -25...80 °C |
| IP rating | IP67 | IP67 |
Only CAD model download is supported
