Similar Illustration
Canceled
Only CAD model download is supported

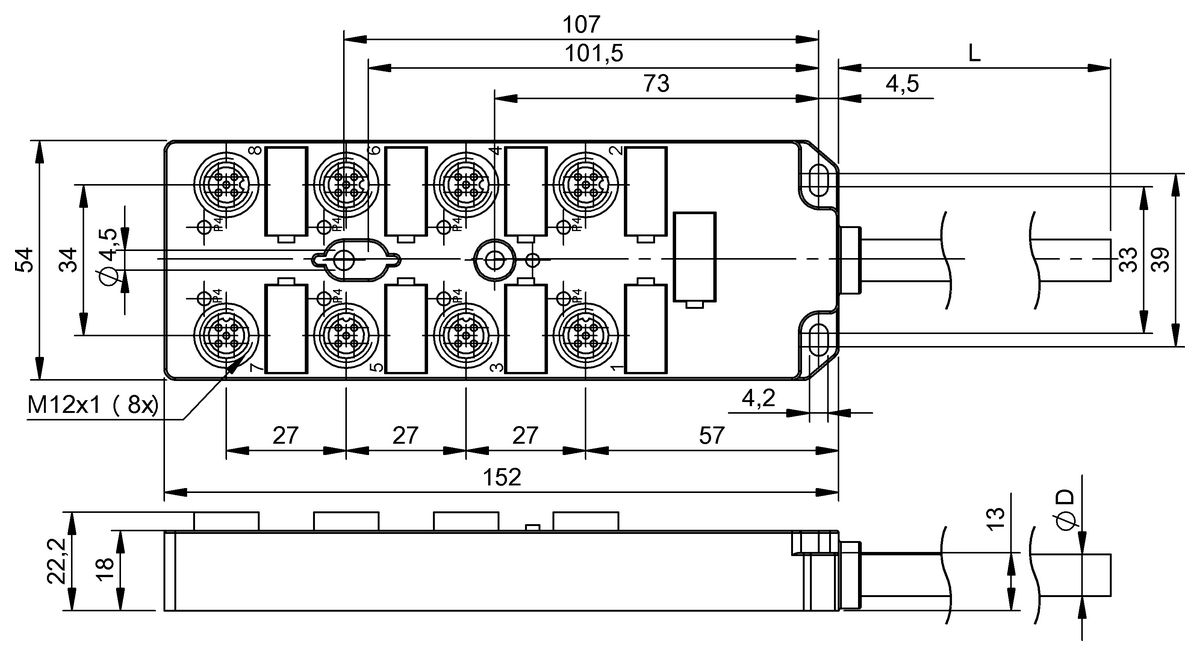

Junction blocks
Connection slots
8x M12x1-Female, 4-pin
Cable
PUR black, 5 m
Operating voltage Ub
10...30 VDC
Output current max.
4 A
Total current max.
12 A
Recommended alternative
BPI00JL
Junction blocks
BPI 8M4A40-2K-B0-KPXB0-050
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
| C04 T8L-00-PB-050M | BPI 8M4A40-2K-B0-KPXB0-050 | |
|
-
List price
|
141.16 USD
List price
|
|
| Connection slots | 8x M12x1-Female, 4-pin | 8x M12x1-Female, 4-pin |
|---|---|---|
| Cable | PUR black, 5 m | PUR black, 5 m, Drag chain compatible |
| Operating voltage Ub | 10...30 VDC | 10...60 VDC/10...60 VAC |
| Output current max. | 4 A | 4 A |
| Total current max. | 12 A | 8 A |
| Ambient temperature | -25...90 °C | - |
| IP rating | IP68 | IP67 |
| Switching function display | - | no LED |
Only CAD model download is supported
