All cameras with Sony sensor IMX392
Description
The IMX392 sensor from Sony from the Pregius family is a monochrome CMOS image sensor with a resolution of 2.4 megapixels. It has a Global shutter in optical 1/2.3 format and a pixel size of 3.45 µm
Technical features
-
ManufacturerSony
-
Sensor nameIMX392
-
Structure of the deviceCMOS
-
Image size1/2.3
-
Number of effective pixels1216 (H) x 1936 (W)
-
Pixel size3.45 µm
-
ADC resolution / output12 bit -> 12 bit
Products
| Product | FPS* | Exposure time |
Power Consumption [W] |
DR [dB] | SNR [dB] |

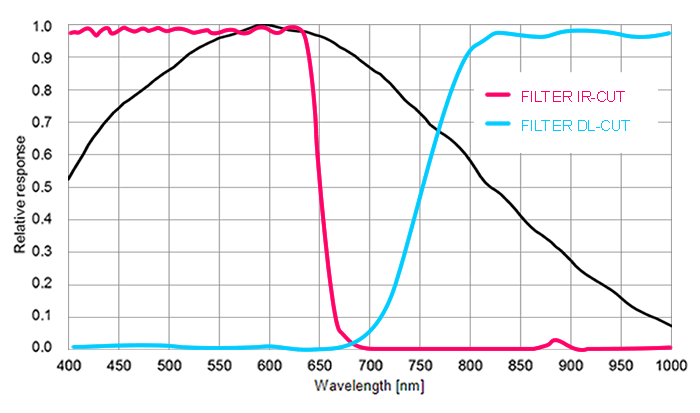

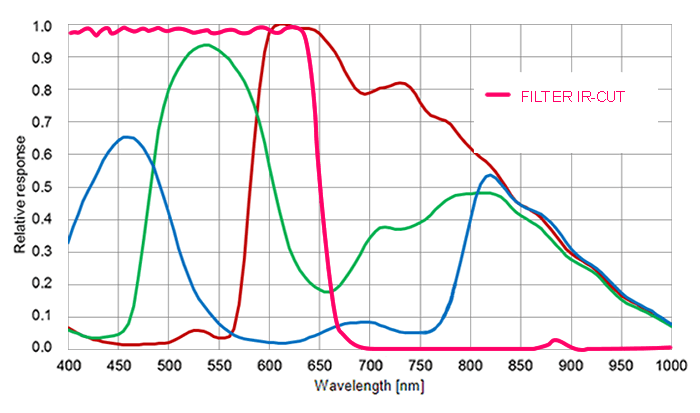

Spectral Sensitivity |
EMVA 1288 |
|---|---|---|---|---|---|---|---|
BVS CA-SF5-0024BC |
161.4 / 166.3 / 392 | 17 µs - 20 s | 3.4 | - | - |
|
- |
BVS CA-SF5-0024BG |
161.4 / 166.3 / 392 | 17 µs - 20 s | 3.4 | - | - |
|
- |
BVS CA-SF2-0024BC |
161.4 / 166.3 / 392 | 17 µs - 20 s | - - - | - | - |
|
- |
BVS CA-SF2-0024BG |
161.4 / 166.3 / 392 | 17 µs - 20 s | - - - | - | - |
|
- |
* Streaming / Burst Mode / Max. Streaming depending on sensor either with 2x2 binning or decimation (horizontal x vertical)
Sony Megapixel vs. maximum frame rate diagram
Megapixel (MP)
Maximum sensor frame rate (FPS)
