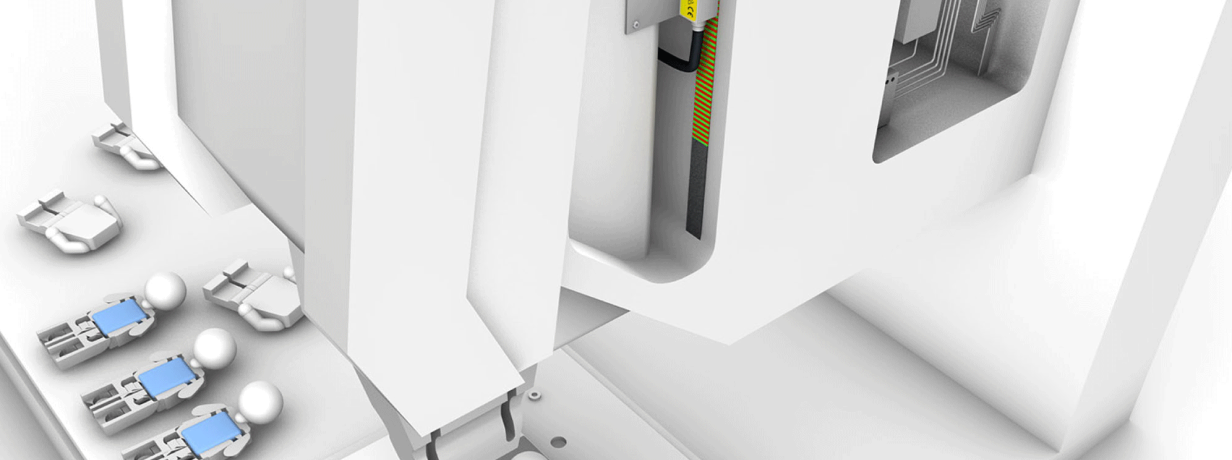

BML SF2 magnetic encoder system for safety
Simple, compact and universally useful
The BML SF2 magnetic safety encoder system with reliable incremental sin/cos interface is ideal for safety applications. The wear-free system supports the "safe incremental value" function. This means you can implement many safety functions per EN IEC 61800-5-2, such as safe slow speed (SLS) or safe stop 1 (SS1).
With their long measuring length up to 48 m and very high repeat accuracy (< 1 µm) this compact, easy to integrate measuring system has universal application. It stands out especially when mounting tolerances pose a challenge to high system performance. At a mounted distance of up to 1 mm you still achieve a system accuracy of ±12µm.
Our BML SF2 magnetic encoder is an ideal partner in demanding applications, like in special machine building for cutting and forming machines, and in all applications where other distance and angle measurement solutions cannot provide the needed accuracy and installation tolerance.
Features
Safe: for applications up to Safety Integrity Level 2 (SIL 2) per EN 61800-5-2 / EN 62061 / IEC 61508 and Performance Level d (PL d) per EN ISO 13849-1
Universal: measuring lengths up to 48 m, high system accuracy down to ± 12 µm, resolution to 1 µm
Reliable: non-contact and wear-free
Time saving: generous read distance up to 1.8 mm makes installation easier
Ease of integration: extremely compact form factor requires very little space
