Single-ended cordsets
Connection

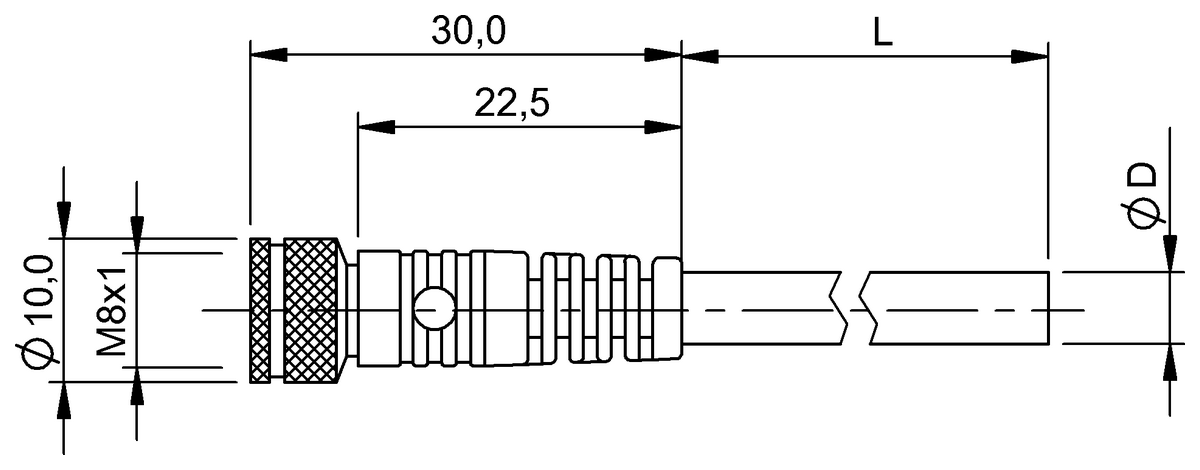

M8x1-Female, Straight, 3-pin, A-coded
Cable
PUR Yellow, 5 m, Drag chain compatible
Number of conductors
3
Conductor cross-section
0.34 mm²
Cable temperature, fixed routing
-40...80 °C
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BCC006LBKS-S 48-PY-05- |
BCC0AKUBCC M313-0000-10-001-PX4334-05029.40 USD |
BCC0C1YBCC M313-0000-10-001-PX4334-050-C00331.46 USD |
BCC0J1WBCC M313-0000-10-004-PX4334-050-C02840.25 USD |
|
| Connection | M8x1-Female, Straight, 3-pin, A-coded | M8x1-Female, straight, 3-pin, A-coded | M8x1-Female, straight, 3-pin, A-coded | M8x1-Female, straight, 3-pin, A-coded |
|---|---|---|---|---|
| Cable | PUR Yellow, 5 m, Drag chain compatible | PUR yellow, 5 m, Drag chain compatible | PUR yellow, 5 m, Drag chain compatible | PUR yellow, 5 m, Drag chain compatible |
| Number of conductors | 3 | 3 | 3 | 3 |
| Conductor cross-section | 0.34 mm² | 0.34 mm² | 0.34 mm² | 0.34 mm² |
| Cable temperature, fixed routing | -40...80 °C | -40...80 °C | -40...80 °C | -40...80 °C |
| Cable temperature, flexible routing | -25...80 °C | -25...80 °C | -25...80 °C | -25...80 °C |
| Operating voltage Ub | 60 VDC / 60 VAC | 60 VDC / 60 VAC | 60 VDC / 60 VAC | 30 VDC |
| Approval/Conformity |
CE cULus |
CE cULus WEEE |
CE cULus WEEE |
CE WEEE |
