13.09.2019
Innovative inductive coupler with IO-Link interface
Fast, non-contact data and power transmission

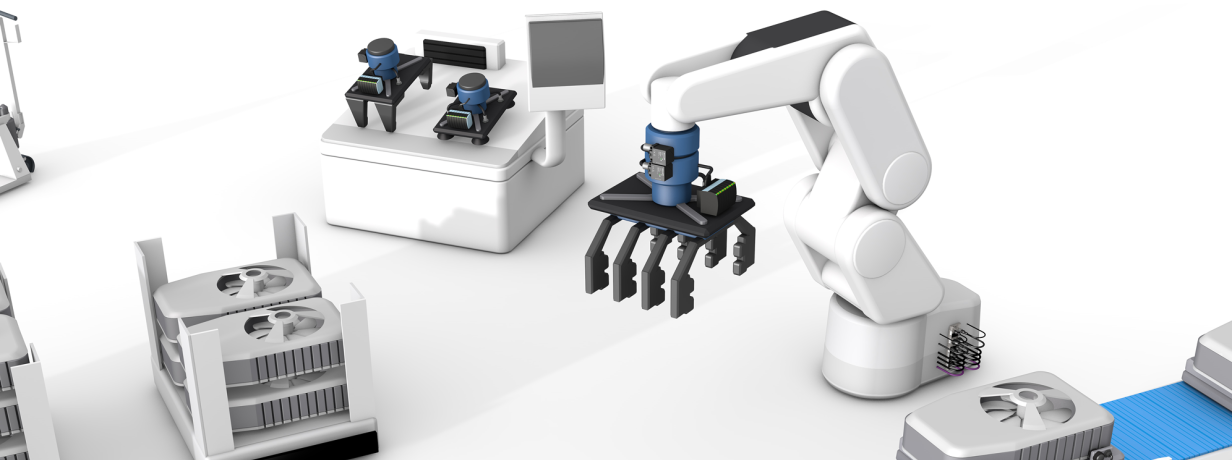

Inductive coupler systems are now indispensable in many applications. With their non-contact transmission of data and power, they have replaced the once- popular plug-in contacts. The maximum transmittable coupler power plays a central role in many applications including the gripper control in robotics.
The new BIC Q40 inductive coupler from Balluff provides you with a system that leaves all the other inductive couplers far behind. It delivers power up to 1.7 A for an output up to 40 W of power – that is three times that of common couplers on the market! Thanks to its IO-Link interface, the system assists in the smooth and fast exchange of events, parameter and process data between the IO-Link device and the IO-Link master. Data transmission is transparent, with no configuration of the IO-Link coupler necessary. By supporting COM3, the system also enables the fastest possible data exchange. Bi-directional communication means you can control actuators and valve terminals at the same time while also collecting signals. Our new BIC inductive coupler has the best available flexibility and performance level now.
Features
Compact block style form factor
Potential 180° turn angle of the plug insert (Base and Remote)
Power up to 1.7 A: approx. 40 W power transfer
Compatible with existing and future systems
Supports COM2 and COM3 operating modes – fastest IO-Link standard
Transmission distances between Base and Remote up to 12.5 mm
