Is IO-Link a Fieldbus? Unpacking the Differences and Benefits

In the world of industrial automation, distinguishing between different communication protocols is crucial for optimizing system efficiency. A common point of confusion is whether IO-Link qualifies as a fieldbus. Although IO-Link is often associated with fieldbuses, it is fundamentally different. IO-Link is a point-to-point communication protocol that connects individual sensors or actuators directly to the control system. IO-Link devices can still integrate into fieldbus networks using gateway devices, enabling them to communicate with the higher-level control system. This blog explores the differences between IO-Link and fieldbuses, how they can work together, and the key advantages and limitations of IO-Link in automation applications.

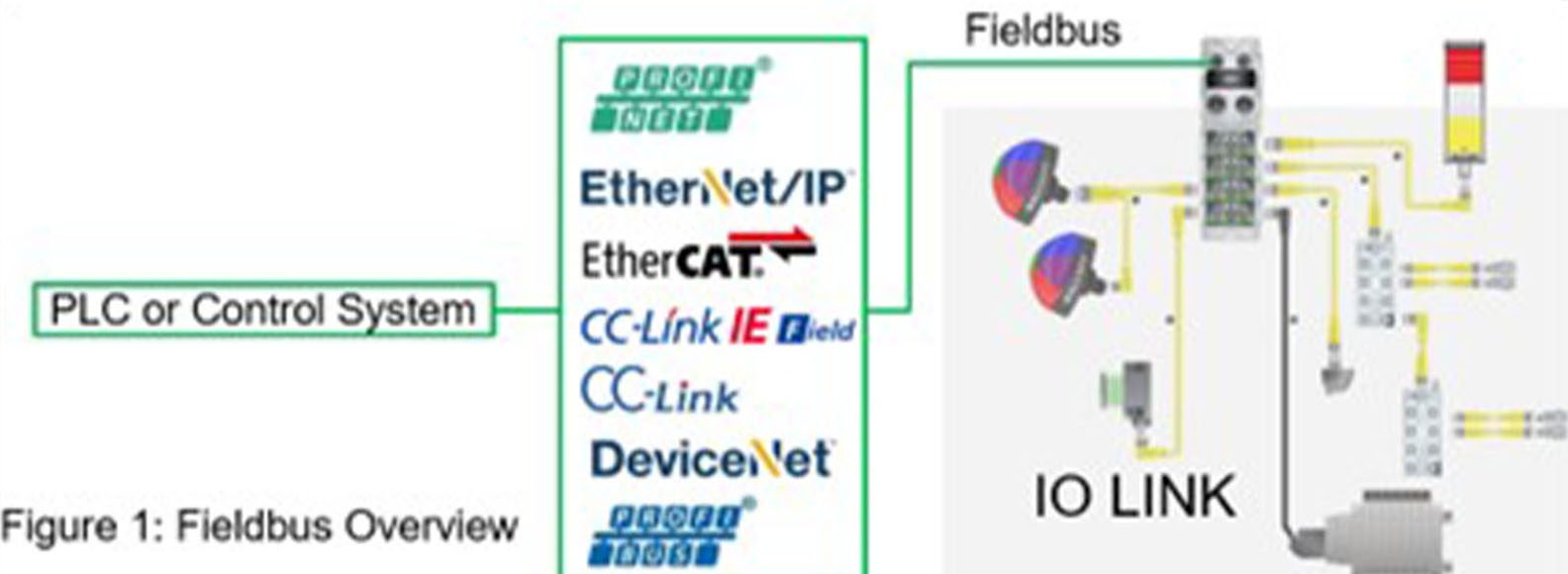

Figure 1 shows the fieldbus connection communicating directly from the gateway to the control system, while the IO link connection communicates from the field device to the gateway.

Disadvantages of IO-Link

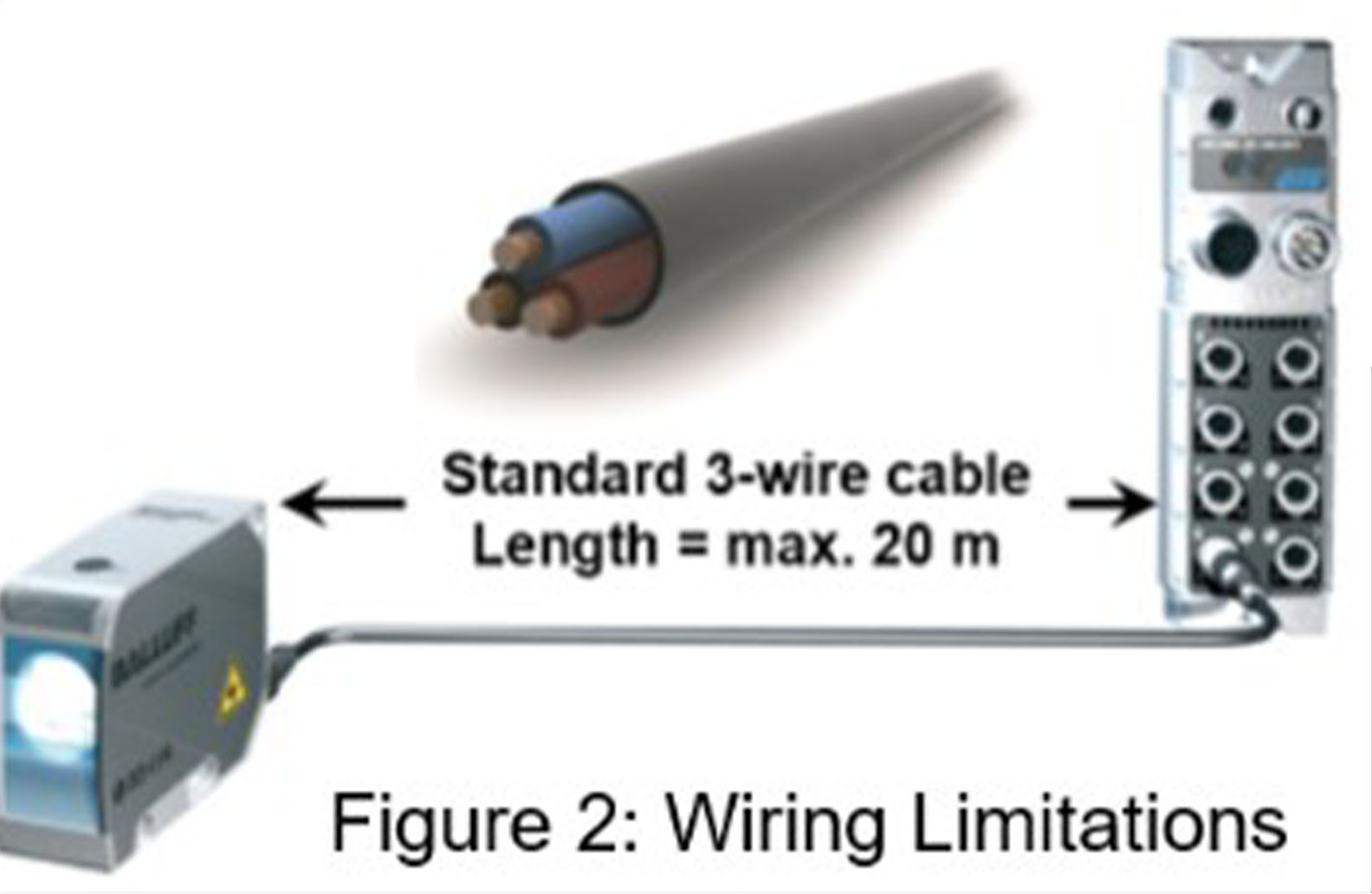

• Distance. IO-Link communication is limited to a maximum distance of 20 meters between the field device to the gateway. Distance limitations can typically be overcome by using the fieldbus connection to travel distances greater than 20 meters.

• Bandwidth limitations. Though IO-Link is fast enough for most automation applications, it may not be suitable for high-speed manufacturing processes, such as pill counting applications.

• Despite these minor disadvantages, IO-Link is suitable for most applications and has become a popular choice due to its flexibility, reduced wiring, and diagnostic capabilities.

Advantages of IO-Link

• Flexibility. Integration is not limited to a single fieldbus. Regardless of the control system you can use IO-Link components with minimal wiring while transmitting large volumes of data.

• Parameterization. You can save field device parameters and configurations into a gateway and download them into a new device if they need replacement.

• Diagnostics. Short circuit detection isolates to a specific port, preventing it from shutting down the rest of the components when detected.

• Industry 4.0. Connect your sensor data to higher-level management systems for analysis.

• Standardization. The IO-Link Consortium created and manages IO-Link, standardizing communication to ensure functionality and compatibility between different IO-Link component manufacturers.

IO-Link itself is not a fieldbus. Despite its limitations, it can be integrated into fieldbus systems to extend its capabilities and leverage the benefits of both point-to-point communication and multi-device networking.
