Smarter, Simpler, Scalable: Why IO-Link Leads Over Traditional Network IO

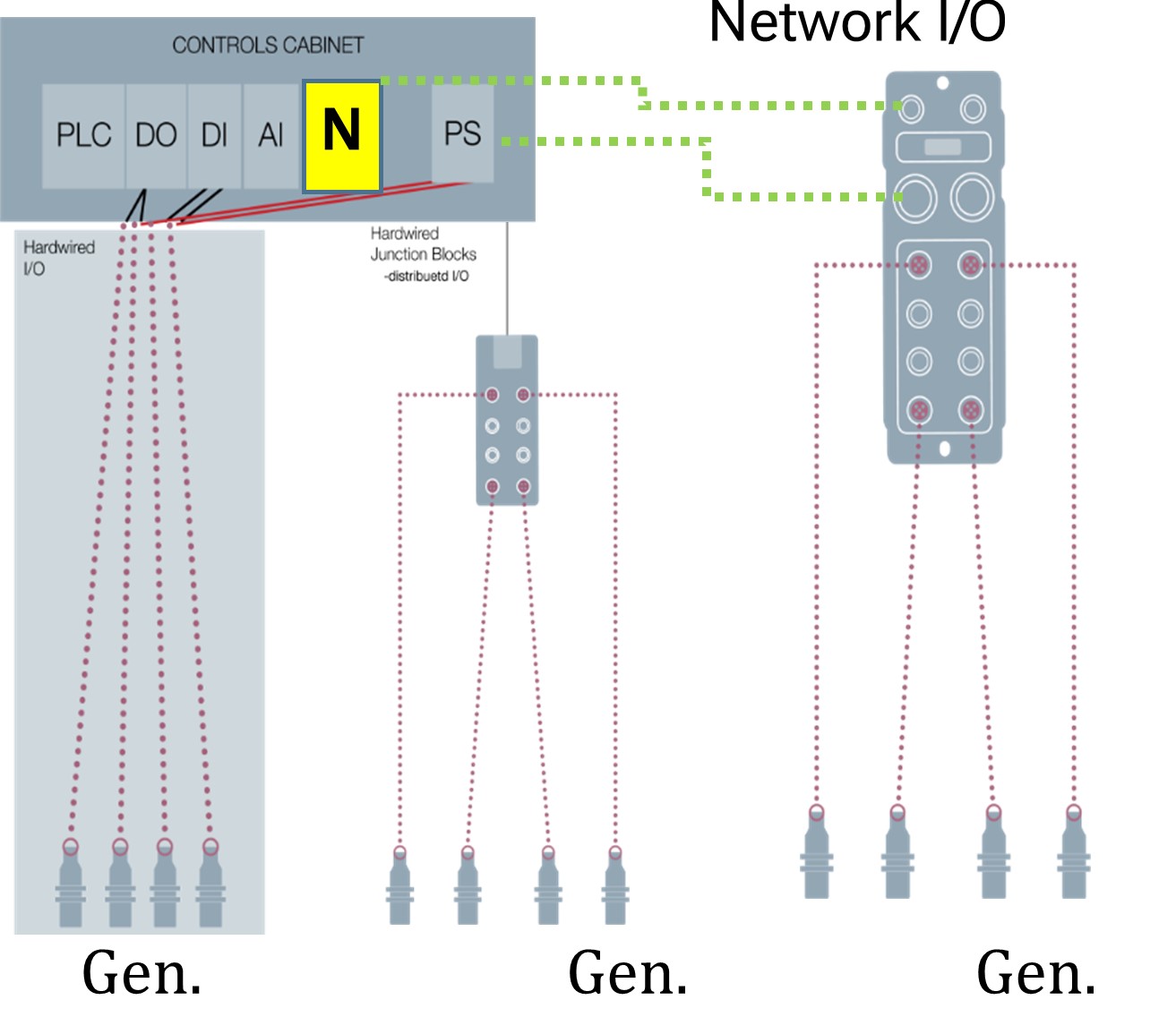

Choosing IO-Link over traditional network IO, such as Profibus, EtherNet/IP, or Profinet, depends on your application’s requirements, particularly regarding data transparency, cost, system complexity, and flexibility. Here's a breakdown of key reasons IO-Link may be the better option in various use cases.

Simplicity and cost efficiency: IO-Link uses standard three-wire sensor cables (unshielded), which significantly reduces wiring complexity and associated costs. In contrast, traditional network IO often requires shielded cables, specialized connectors, and more expensive interface modules. With its standardized cabling and straightforward device replacement, IO-Link reduces installation and maintenance expenses.

Richer data and diagnostics: IO-Link enables bi-directional communication with sensors/actuators, giving access to device status, process data, diagnostic messages, and manufacturer information. Unlike traditional digital IO, which typically only provides on/off or analog values without advanced diagnostics, IO-Link helps with predictive maintenance and faster troubleshooting.

Device parameterization: IO-Link simplifies device parameterization by allowing automatic configuration of device settings from the master, which is especially useful for machine changeovers or device replacement. In contrast, traditional IO systems usually require manual reconfiguration or programming, leading to increased effort or potential errors. This feature makes IO-Link great for flexible manufacturing and reducing downtime.

Standardization and interoperability: IO-Link is an open, globally standardized technology defined by IEC 61131-9, ensuring interoperability across devices and systems. Unlike traditional IO protocols that often require vendor-specific gateways or drivers, IO-Link enables easier integration across different brands and ecosystems.

Scalability: IO-Link can be used with IO hubs, which allow multiple sensors to connect to a single IO-Link port. This contrasts with traditional IO systems that usually require dedicated IO cards or network nodes for each connection. As a result, IO-Link is ideal for modular and expandable systems.

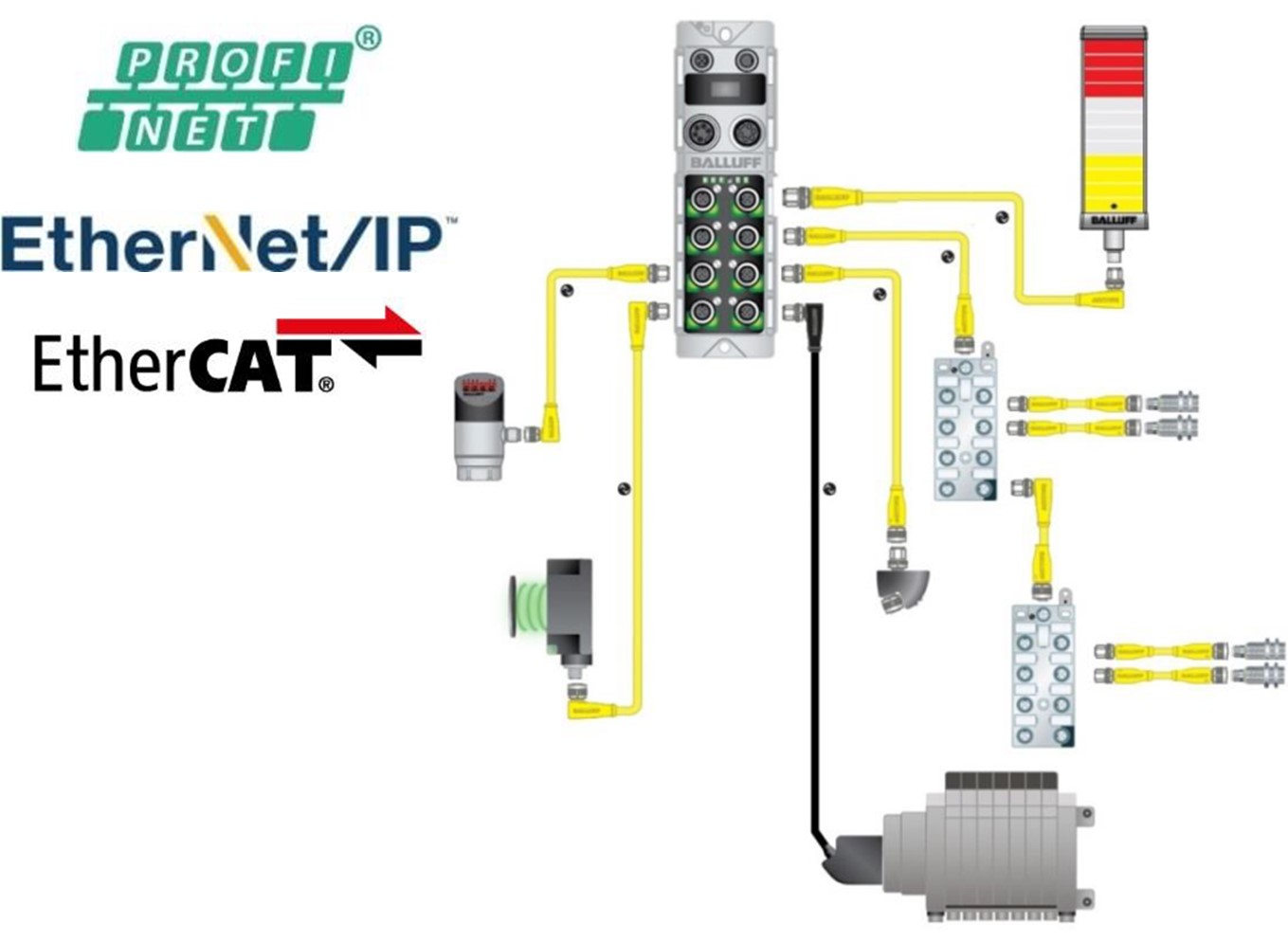

Compatibility with existing systems: IO-Link devices connect to IO-Link masters, which in turn communicate over fieldbuses such as Profinet, EtherNet/IP, and Modbus. This allows IO-Link to be easily retrofitted into existing PLC systems using compatible IO-Link masters, effectively bridging the gap between smart sensors and existing control systems.

However, there are scenarios where traditional network IO may still be the better choice. Applications that demand high-speed communication, such as motion control, or those requiring long-distance signal transmission beyond IO-Link's 20-meter cable length limitation, may benefit more from conventional IO solutions.

Enhanced device data and diagnostics: IO-Link enhances device data and diagnostics by supporting bi-directional communication, which allows access to real-time diagnostics, device ID and status, as well as process and configuration data. In contrast, traditional IO systems typically transmit only basic signals such as on/off or analog values. This advanced data access provided by IO-Link leads to better visibility, easier troubleshooting, and predictive maintenance.
