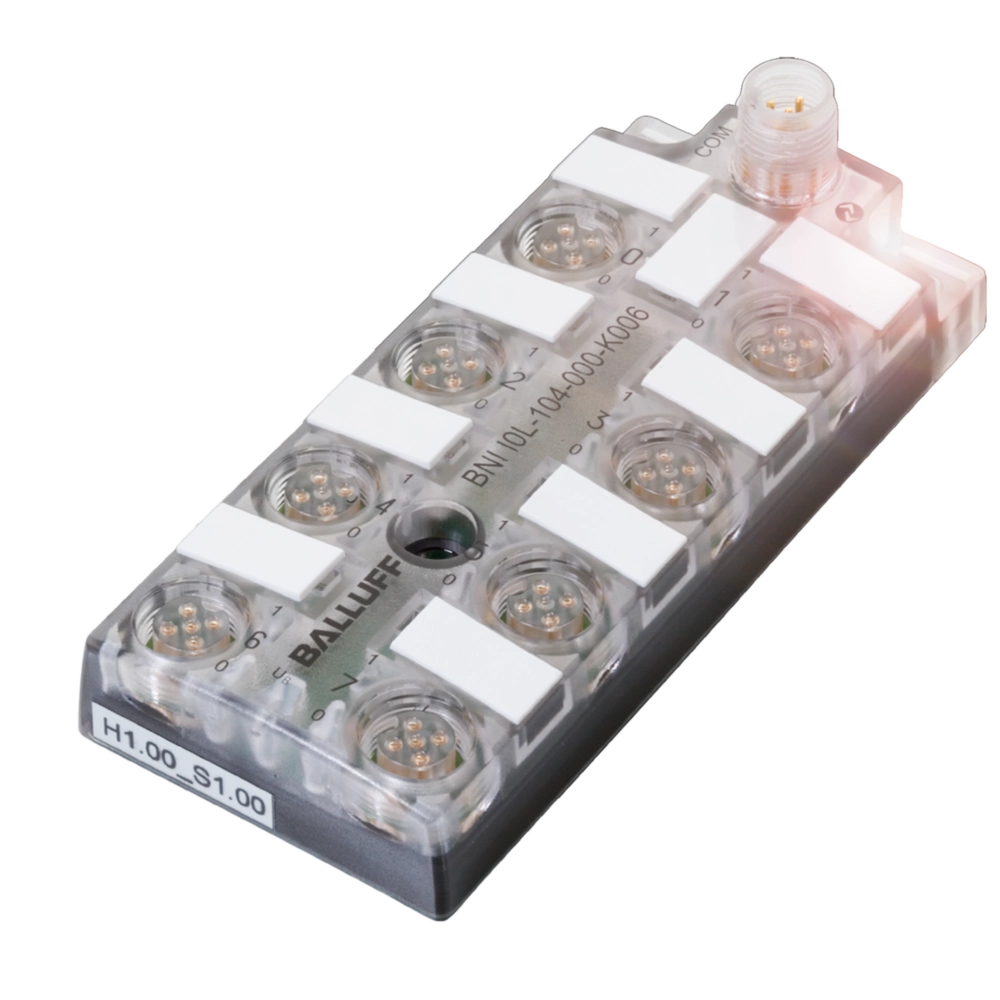

IO-Link sensor/actuator hubs
Interface
IO-Link 1.0
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection slots
8x M12x1-Female, 5-pin, A-coded
Digital inputs
8x PNP, Type 2
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BNI0005BNI IOL-102-000-K006- |
BNI00J0BNI IOL-104-011-K006198.31 USD |
BNI0008BNI IOL-710-000-K006228.12 USD |
BNI0007BNI IOL-709-000-K006227.39 USD |
|
| Interface | IO-Link 1.0 | IO-Link 1.1 | IO-Link 1.0 | IO-Link 1.0 |
|---|---|---|---|---|
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 8x PNP, Type 2 | 16x PNP, Type 3 | 8x PNP, Type 2 | 8x PNP, Type 2 |
| Configurable inputs/outputs | no | no | no | no |
| Current sum US, sensor | 4 A | 4 A | 4 A | 4 A |
| Housing material | PA, Transparent | PA, Transparent | PA, Transparent | PA, Transparent |
| Dimension | 50 x 30.8 x 115 mm | 50 x 30.8 x 115 mm | 50 x 30.8 x 115 mm | 50 x 30.8 x 115 mm |
| Ambient temperature | -5...55 °C | -5...55 °C | -5...55 °C | -5...55 °C |
| IP rating | IP67, when threaded in | IP67, when threaded in | IP67, when threaded in | IP67, when threaded in |
| Transfer rate | COM2 (38.4 kBaud) | COM2 (38.4 kBaud) | COM2 (38.4 kBaud) | COM2 (38.4 kBaud) |
| Process data cycle min. | 3.0 ms | 3.5 ms | 30 ms | 30 ms |
| Process data IN | 1 byte Input | 2 bytes | 10 bytes | 10 bytes |
